Pinpoint Test 2

Flowchart No.2 Symptom Turn signal function does not operate (hazard light function operates)

Possible Cause
^ Burnt TURN 15A fuse
^ Damaged turn switch
^ Damaged flasher unit
^ Open or short circuit in wiring harness
^ Poor connection of connector Step 1

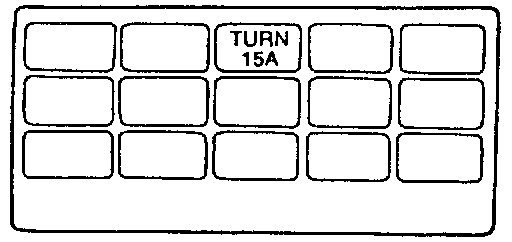

Fuse Location:

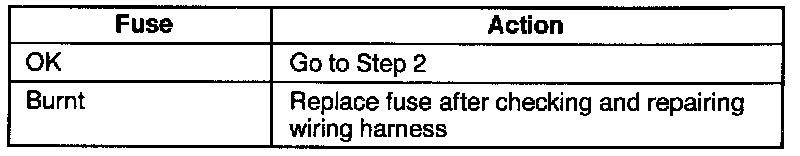

Action Chart:

Step 1
Check the TURN 15A fuse in the fuse block.

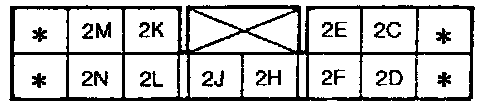

Terminal Identification:

Action Chart:

Step 2
1. Remove the column cover.
2. Turn the ignition switch to ON.
3. Measure the voltage at terminal 2F (B/G) of the combination switch connection

Terminal Identification:

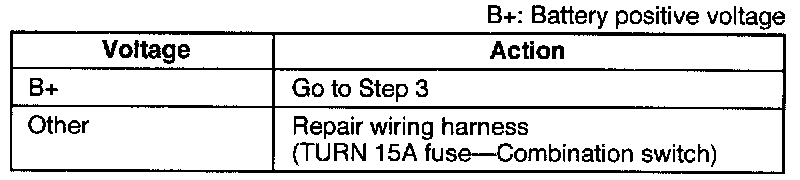

Action Chart:

Step 3
1. Turn the turn switch on (left or right).
2. Measure the voltage at terminal 1G (G/Y) or 1H (B/R) of the combination switch connector.

Voltmeter Connection:

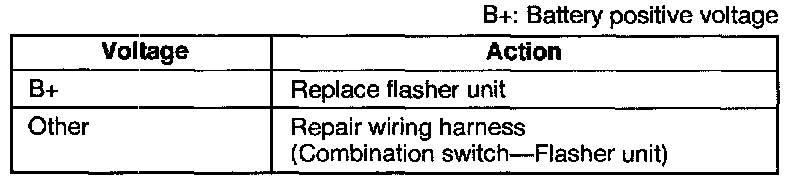

Action Chart:

Step 4

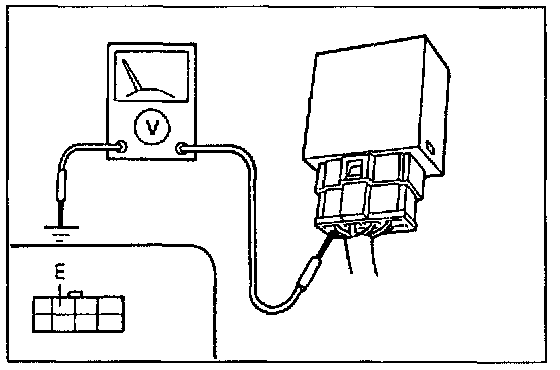

Set the turn switch to the right position and measure the voltage at terminal E (B/R) of the flasher unit connector.

Voltmeter Connection:

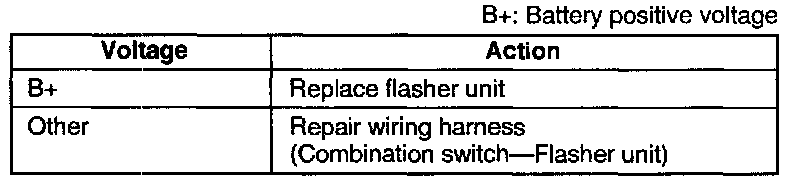

Action Chart:

Step 5

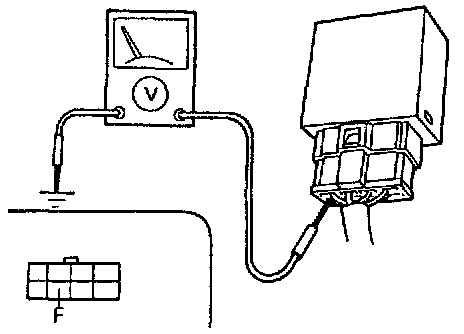

Set the turn switch to the left position and measure the voltage at terminal F (G/Y) of the flasher unit connector.
