Pinpoint Test 5

Flowchart No.5 Symptom Left or right turn signal function and hazard light function do not operate

Possible Cause
^ Damaged flasher unit
^ Burnt light bulbs
^ Open or short circuit in wiring harness Poor connection of connector

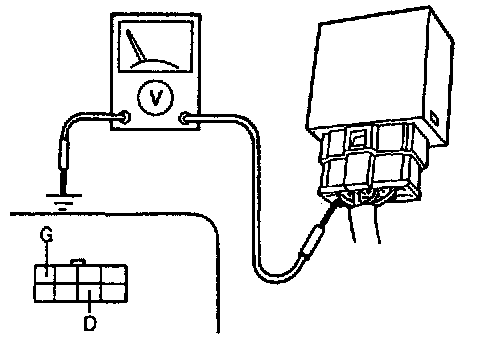

Voltmeter Connection:

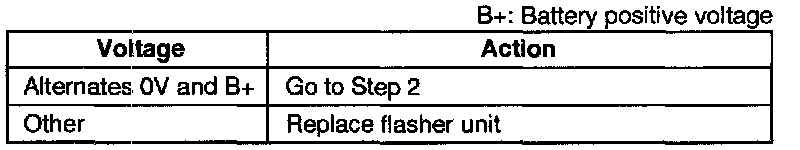

Action Chart:

Step 1
1. Turn the ignition switch to ON.
2. Turn the turn switch on (left or right).
3. Measure the voltage at terminal D (G/B) or G (G/W) of the flasher unit connector.

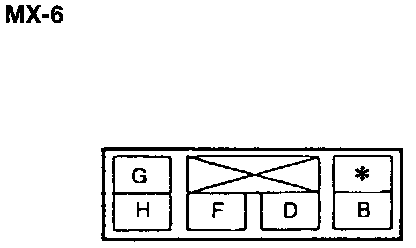

Terminal Identification:

Action Chart:

Step 2
1. Remove the front combination light and disconnect the connector.
2. Turn the turn switch on (left or right).
3. Measure the voltage at terminal A (G/B or G/W) [626] or C (G/B or G/W) [MX-6] of the front combination light connector.

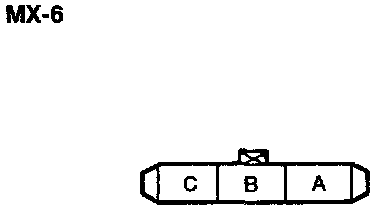

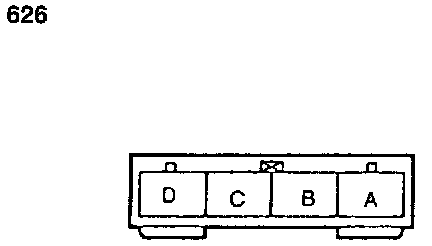

Terminal Identification:

Action Chart:

Step 3
1. Remove the trunk end upper trim and trunk end lower trim.
2. Turn the turn switch on (left or right).
3. Measure the voltage at terminal D (G/B or G/W) [626] or G (G/B or G/W) [MX-6] of the rear combination light connector.

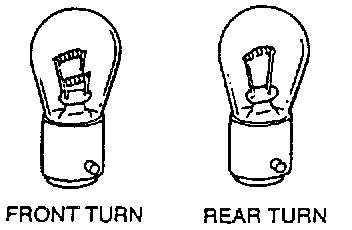

Bulb Inspection:

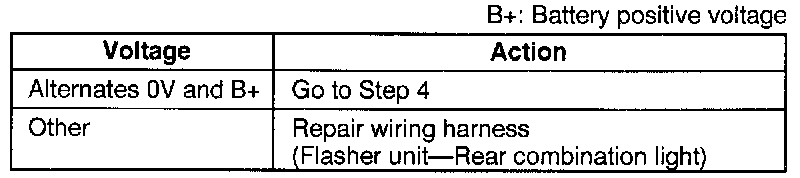

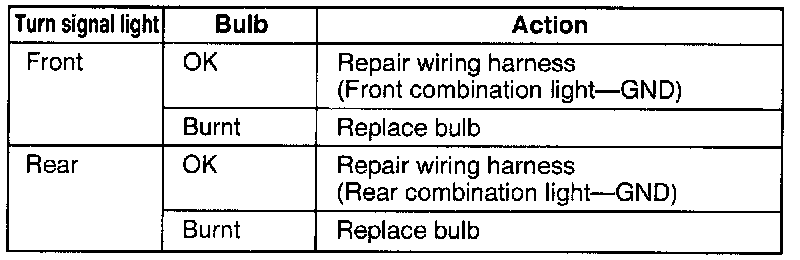

Action Chart:

Step 4
1. Turn the ignition switch to LOCK.
2. Remove and check the bulbs.
