Description of On-Board Diagnostics

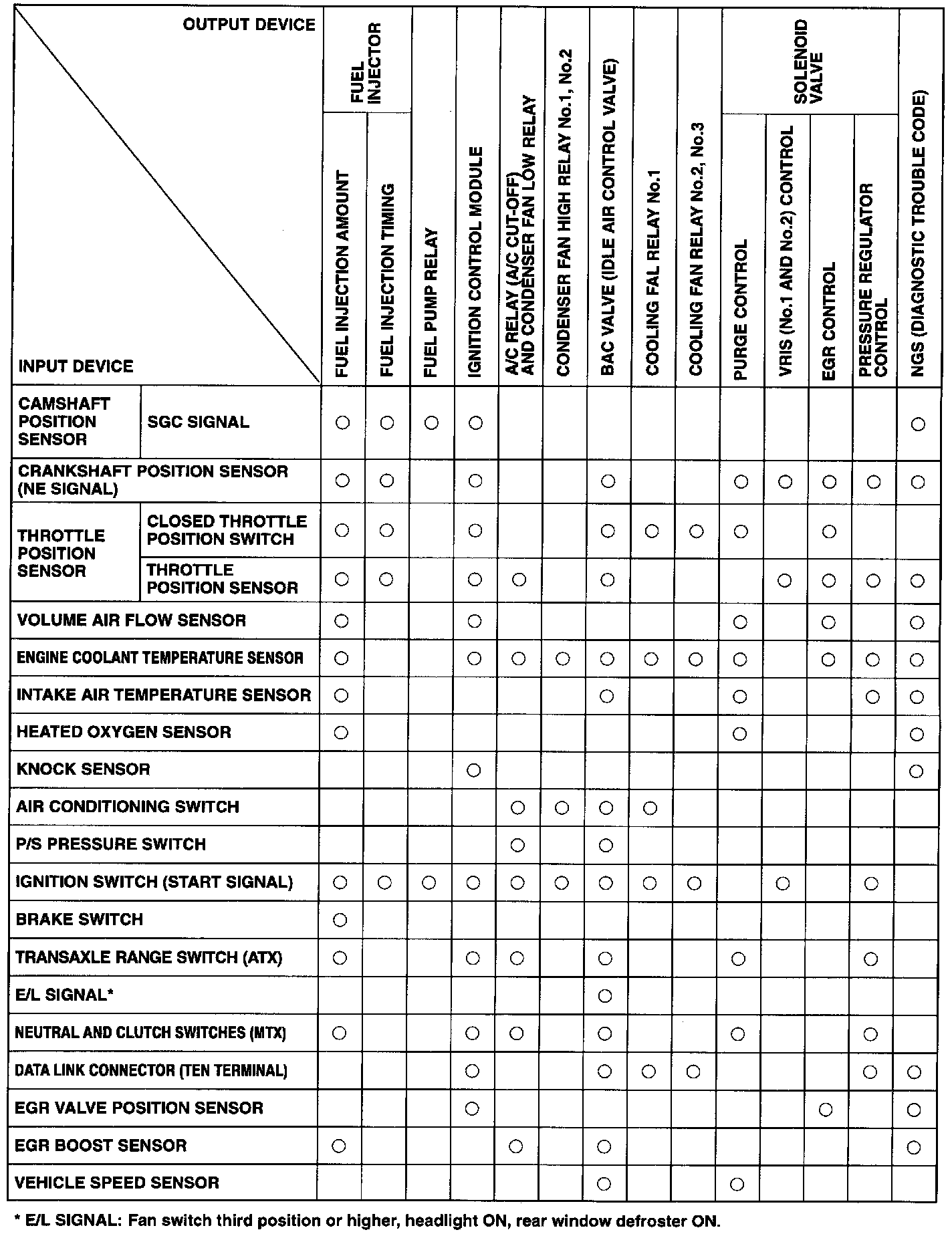

Input Output Relationship Chart:
INPUT OUTPUT RELATIONSHIP CHART

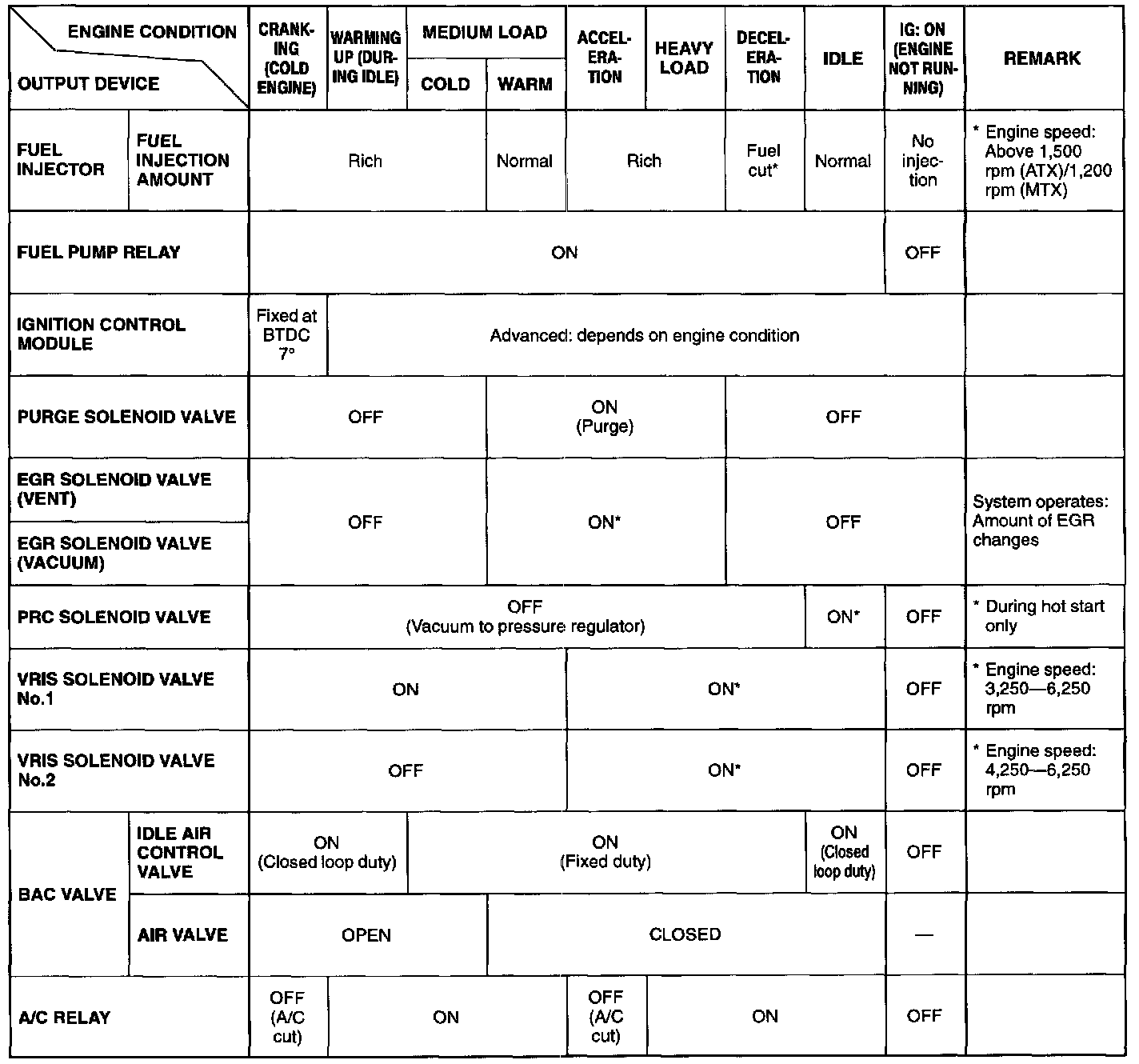

Engine Condition In Relationship To Output Devices:
OUTPUT DEVICES AND ENGINE CONDITION RELATIONSHIP CHART
INPUT OUTPUT RELATIONSHIP CHART
OUTPUT DEVICES AND ENGINE CONDITION RELATIONSHIP CHART
