Variable Induction Control Actuator: Testing and Inspection

VRIS Shutter Valve Actuator Vacuum Inspection:

Inspection
1. Disconnect the vacuum hose from the shutter valve actuator.

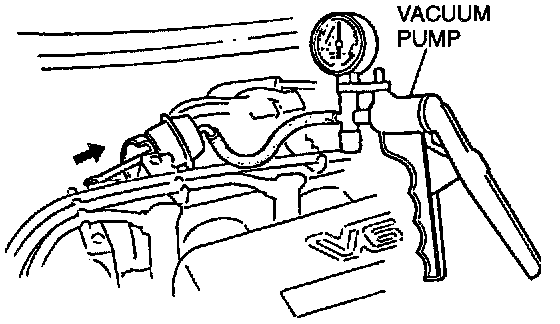

2. Connect a vacuum pump to the actuator.
3. Apply vacuum and verify that the rod is pulled into the actuator.
