Windshield Washer Motor: Testing and Inspection

Inspection
1. Remove the mud guard.
2. Disconnect the windshield washer motor connector.

Battery Connection:

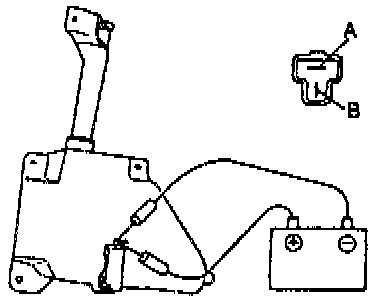

3. Connect battery positive voltage to terminal B and ground to terminal A of the motor.
4. Verify that the windshield washer motor operates.
5. If the motor does not operate, replace it.
