Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1997
>>
MX-5 Miata L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

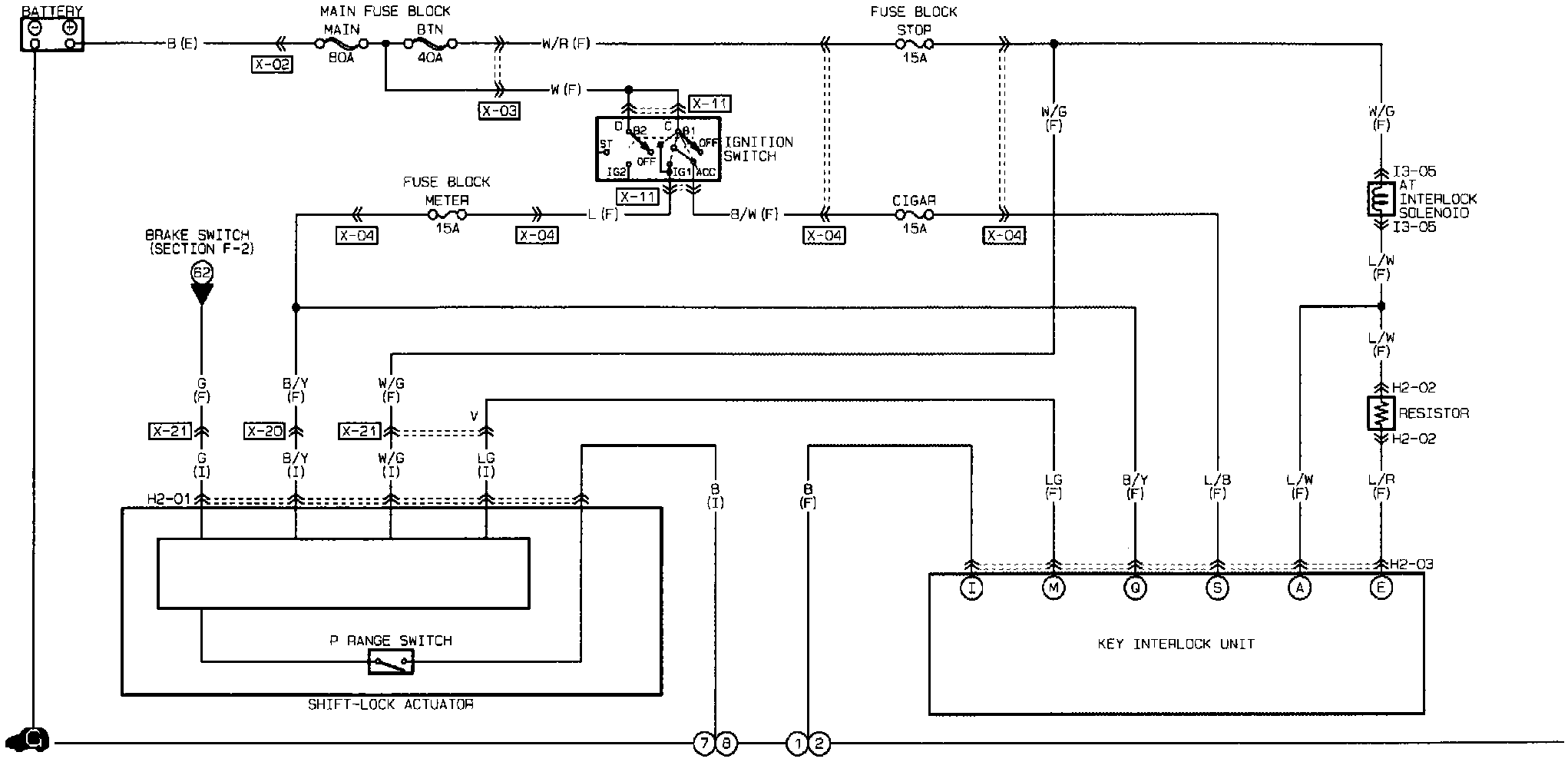

Shift-Lock System, Key Interlock System:
