MX-5 Miata L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Condenser Fan Motor
Condenser Fan Motor

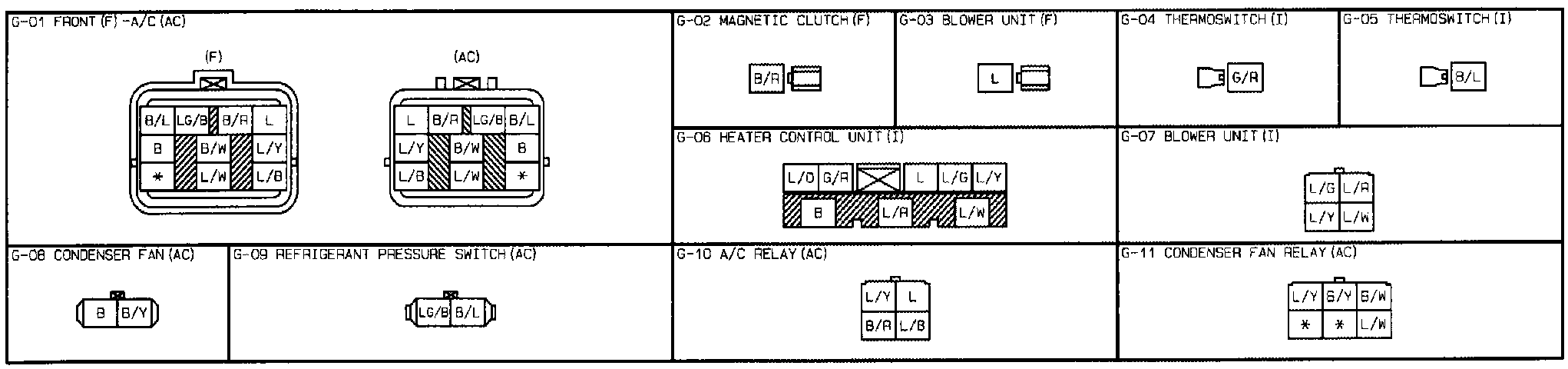

Heater And Air Conditioner, Condenser Fan- Connectors:
