System Diagram

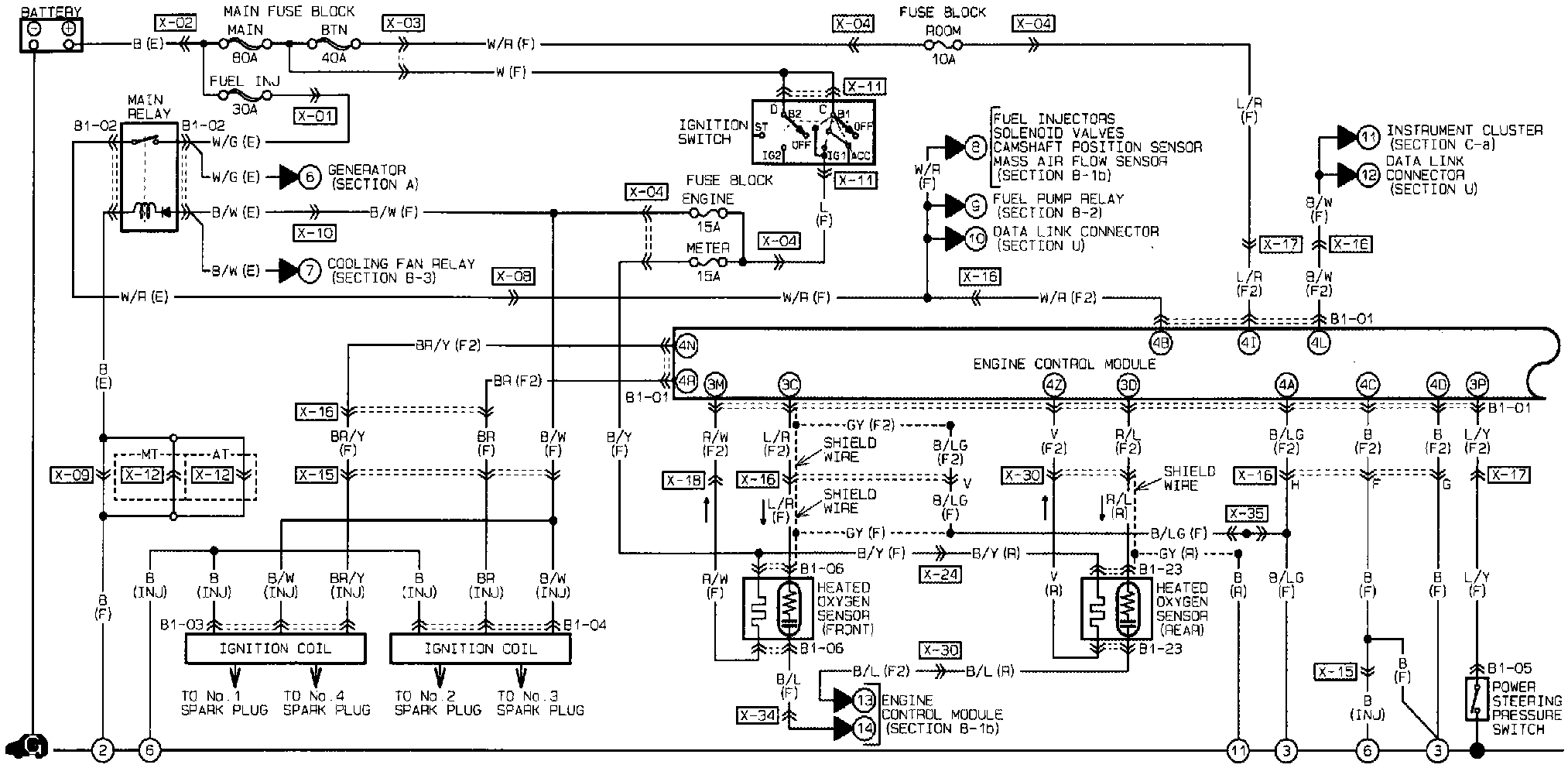

Ignition System, Engine Control System B-1A:

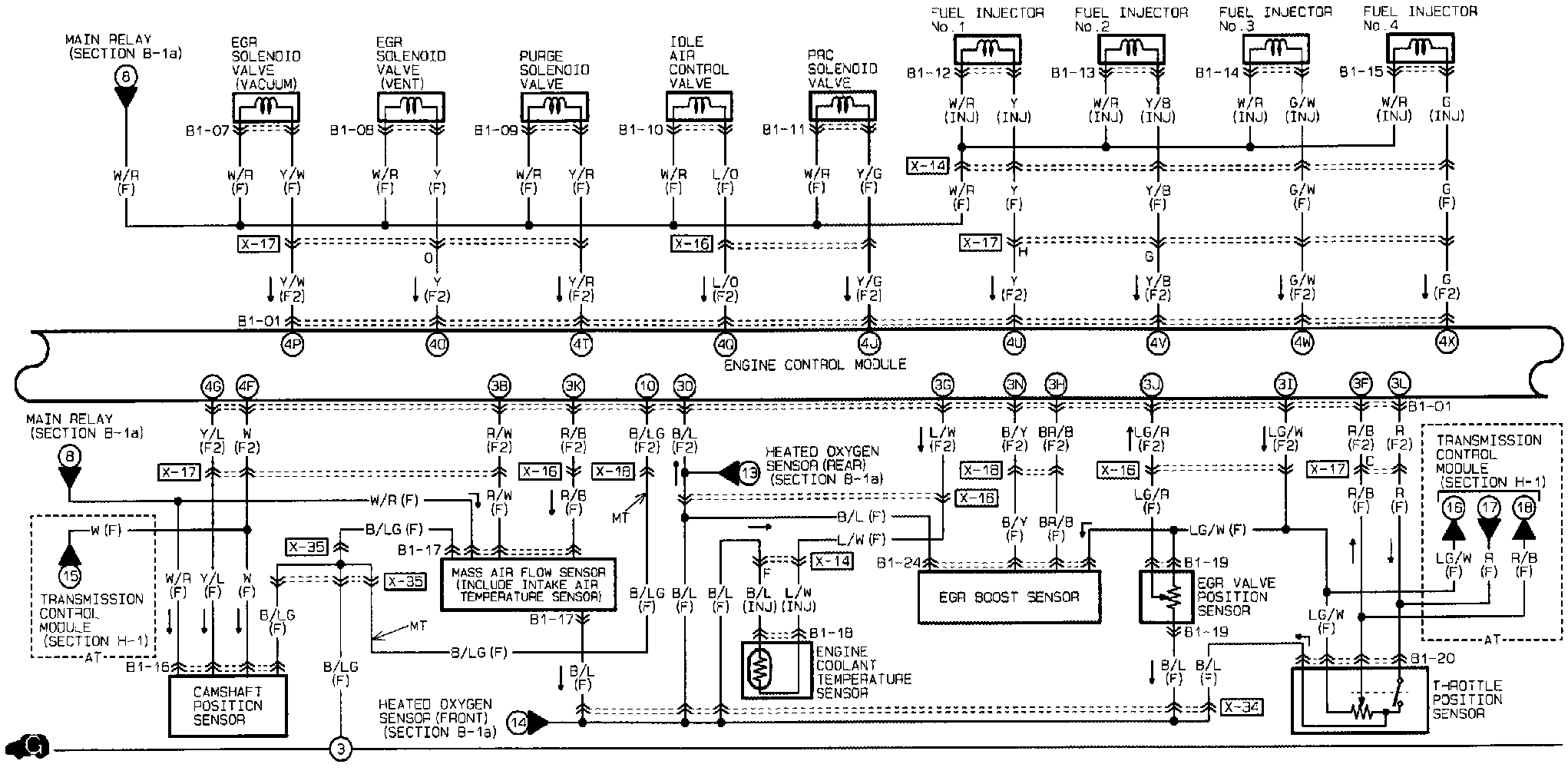

Engine Control System B-1B:

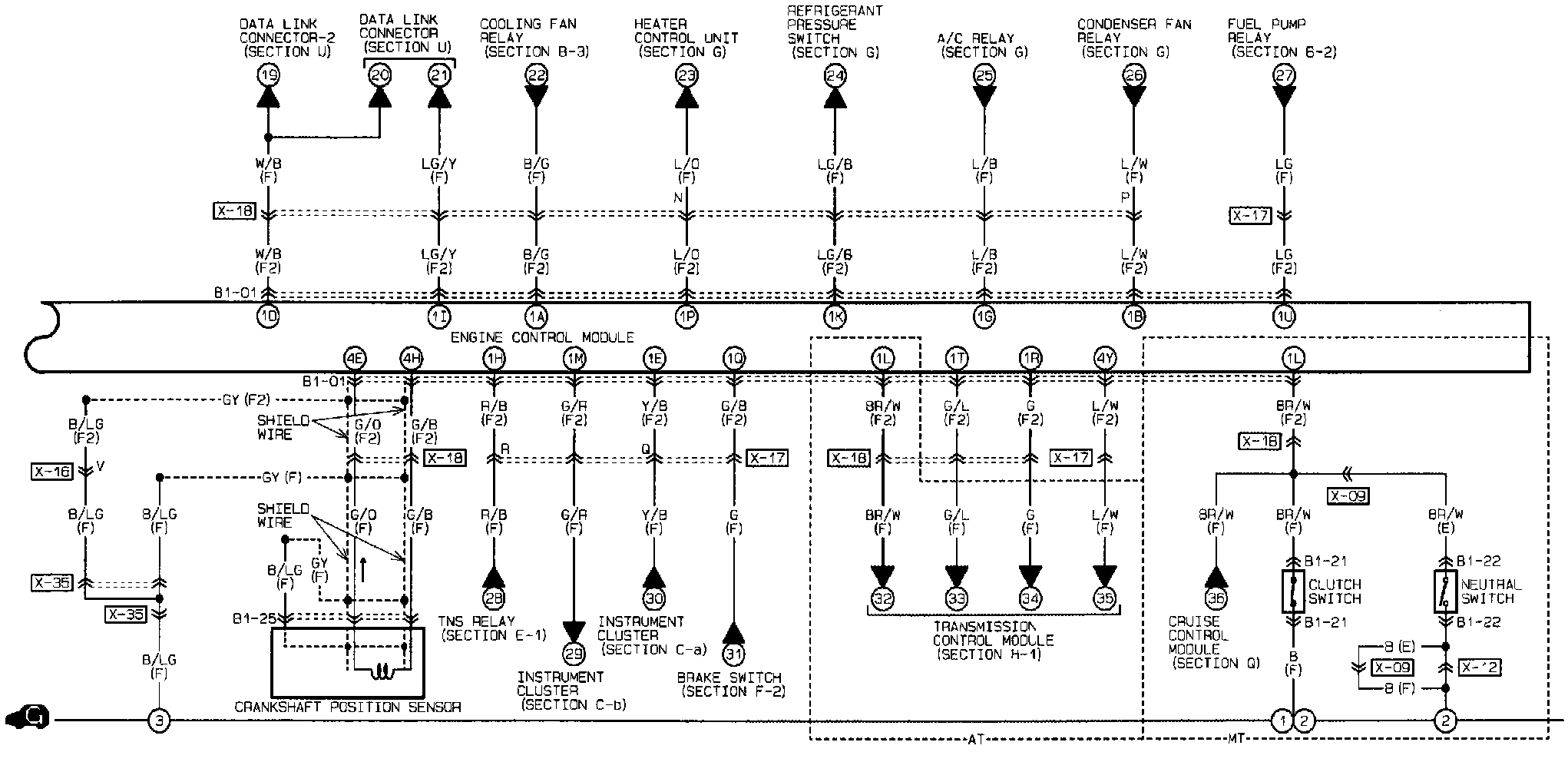

Engine Control System B-1C:

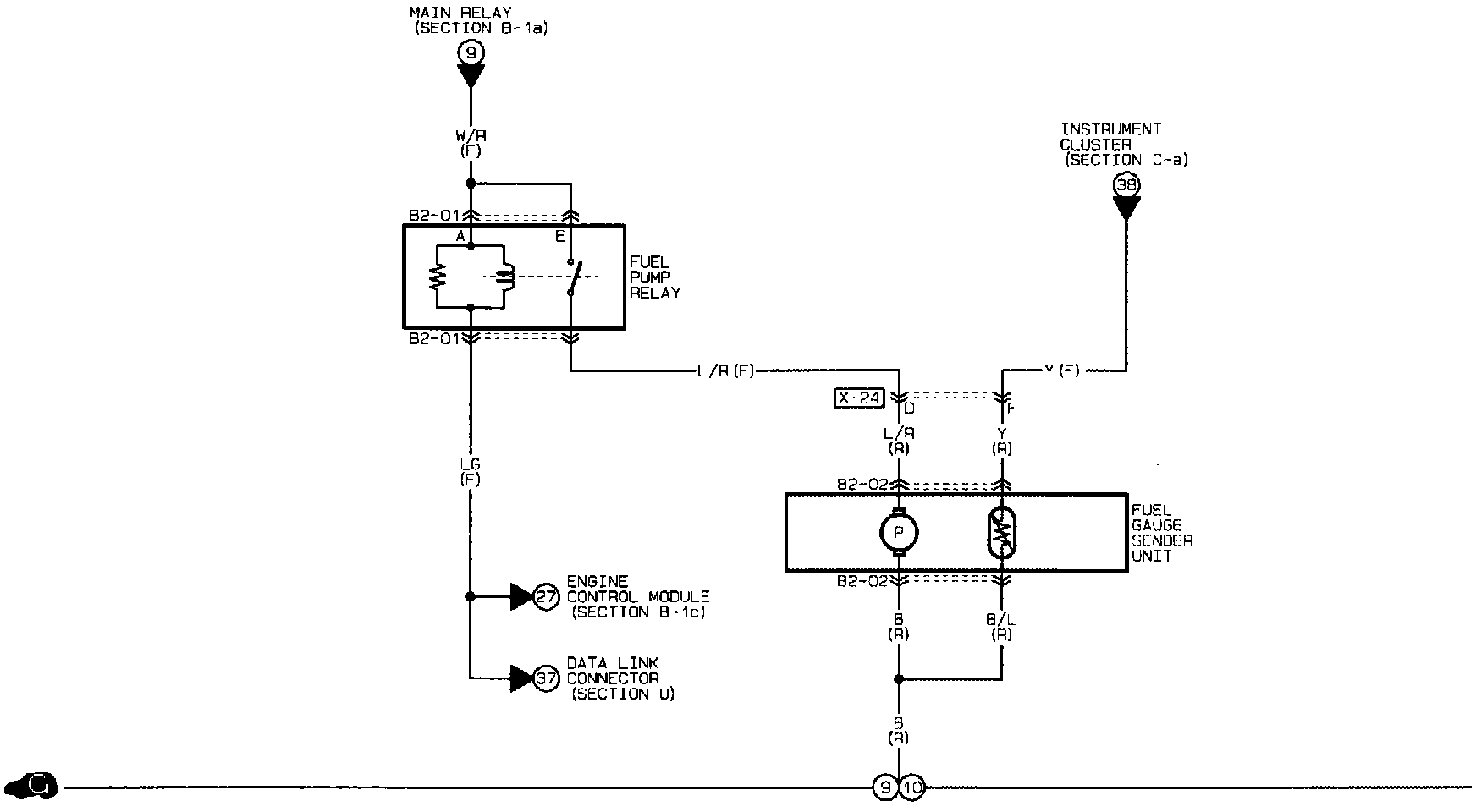

Fuel Control System B-2:
