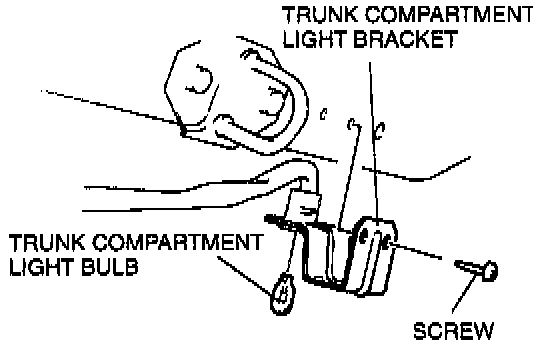

Trunk Lamp: Service and Repair
1.
Disconnect the negative battery cable.
2.
Remove the screw.
3.
Remove the trunk compartment light bracket.
4.
Remove the trunk compartment light bulb.
5.
Install in the reverse order of removal.
