Replacement

REMOVAL
1. Clean the transmission exterior thoroughly by using a steam cleaner or cleaning solvent.
2. Drain the ATF.
3. Remove the exhaust system. Refer to Exhaust System.
4. Remove the propeller shaft.
5. Disconnect the speedometer cable.





6. Support the transmission on a jack.
7. Remove the power plant frame.

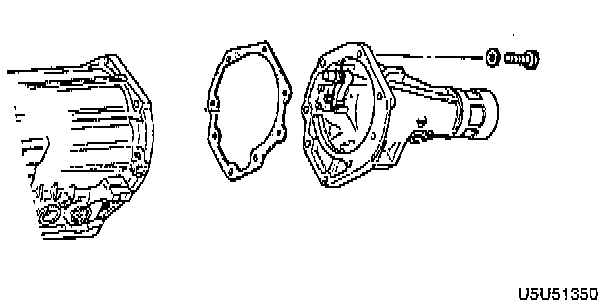

8. Remove the extension housing and gasket.

INSTALLATION
1. Install a new gasket and extension housing on the transmission case and tighten to 20 - 24 Nm (15 - 18 ft. lbs.).
2. Install the power plant frame.
3. Connect the speedometer cable.
4. Install the propeller shaft.
5. Install the exhaust system. Refer to Exhaust System.
6. Add ATF to the specified level.
