Wiper Motor Linkage: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the windshield wiper arm and blade.
3. Remove the cowl grille.
4. Remove the baffle cover.
5. Pry off the connection between the windshield wiper motor and windshield wiper link.

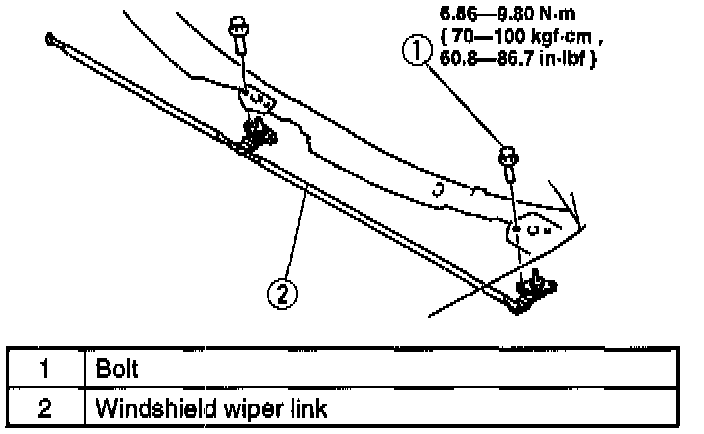

6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.
8. Connect the windshield wiper link to the windshield wiper motor.
9. Install the baffle cover.
10. Install the cowl grille.
11. Install the windshield wiper arm and blade.
12. Connect the negative battery cable.
13. Adjust the windshield wiper arm and blade.
