No. 2 One Power Outside Mirror Does Not Operate

Flowchart No. 2 Symptom
One power outside mirror does not operate
Right power outside mirror does not move vertically or horizontally
Left power outside mirror does not move vertically or horizontally

Possible cause
^ Damaged power outside mirror switch
^ Damaged outside mirror
^ Open or short circuit in wiring harness Poor connection of connector.

Step 1

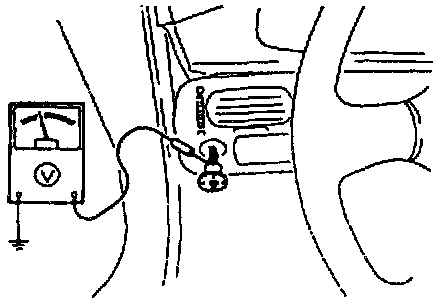

1. Remove the power outside mirror switch.
2. Turn the ignition switch to ACC.

Voltmeter Connection:

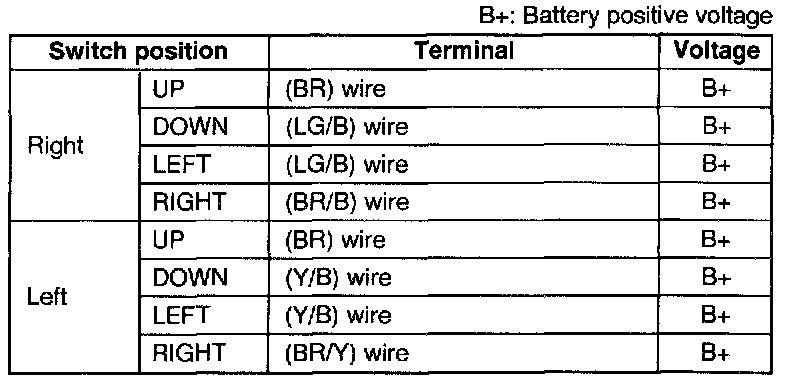

Reference:

3. Measure the voltage at the terminal wires of the power outside mirror switch connector with the power outside mirror switch in the following positions.
4. If correct, go to Step 2.
5. If not as specified, check the power outside mirror switch.

Step 2

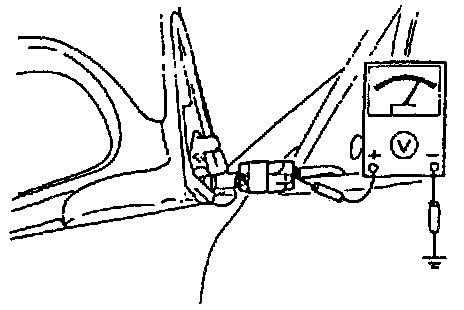

1. Remove the outside mirror.

Voltmeter Connection:

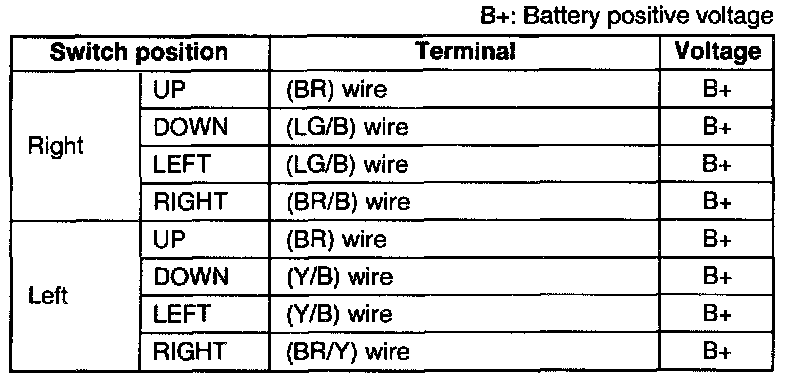

Reference:

2. Measure the voltage at the terminal wires of the outside mirror connector with the power outside mirror switch in the following positions.
3. If correct, check the outside mirror.
4. If not as specified, repair the wiring harness (power outside mirror switch-outside mirror).
