Pinpoint Test 2

Flowchart No.2 Symptom Headlights do not illuminate

Possible cause
^ Burnt HEAD 30A fuse
^ Damaged headlight relay
^ Damaged combination switch
^ Open or short circuit in wiring harness
^ Poor connection of connector

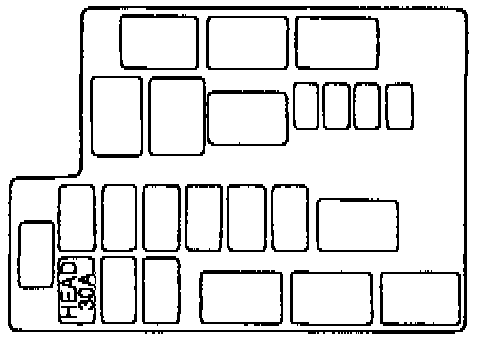

Fuse Location:

Action Chart:

Step 1
Check the HEAD 30A fuse in the main fuse block.

Step 2
1. Remove the headlight relay.

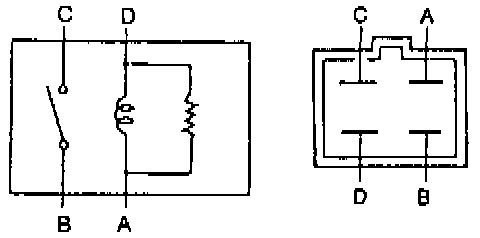

Terminal Identification:

Action Chart:

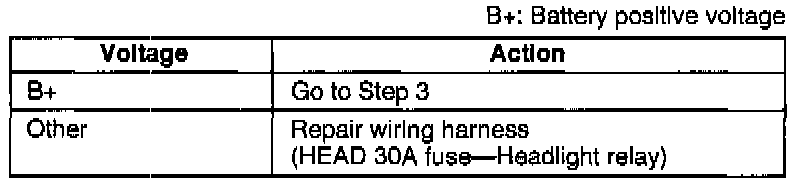

2. Measure the voltage at terminals A(W/R) and C(R) of the headlight relay connector.

Step 3

Terminal Identification:

Reference:

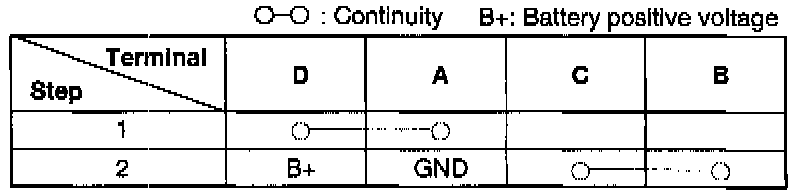

1. Apply battery positive voltage and check for continuity between the terminals of the headlight relay.
2. If correct, install the headlight relay and go to Step 4.
3. If not as specified, replace the headlight relay.

Step 4
1. Remove the column cover.

Terminal Identification:

Action Chart:

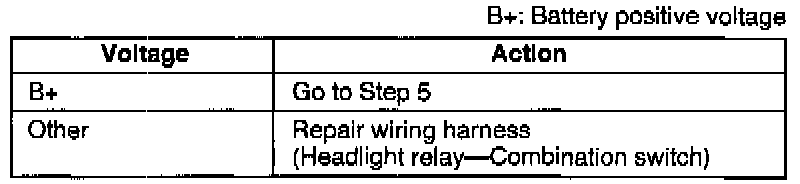

2. Measure the voltage at terminal D(W/R) of the combination switch connector.

Step 5
1. Disconnect the combination switch connector.
2. Turn the headlight switch on (second position).

Terminal Identification:

Action Chart:

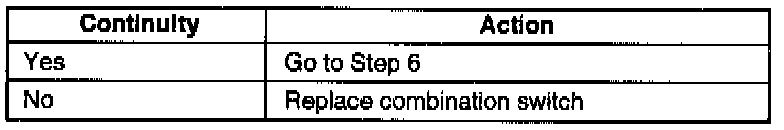

3. Check for continuity between terminals D(W/R) and E(B) of the combination switch.

PAGE REFERENCE:

Step 6

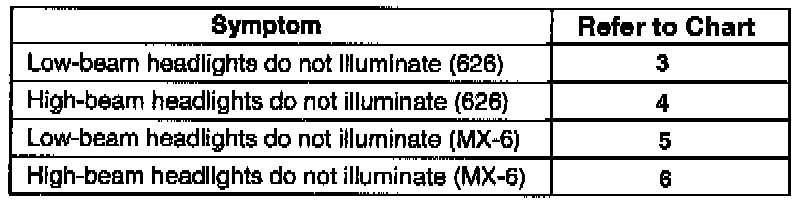

Refer to the appropriate flowchart.
