Accelerator Pedal: Service and Repair

REMOVAL / INSTALLATION
1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.

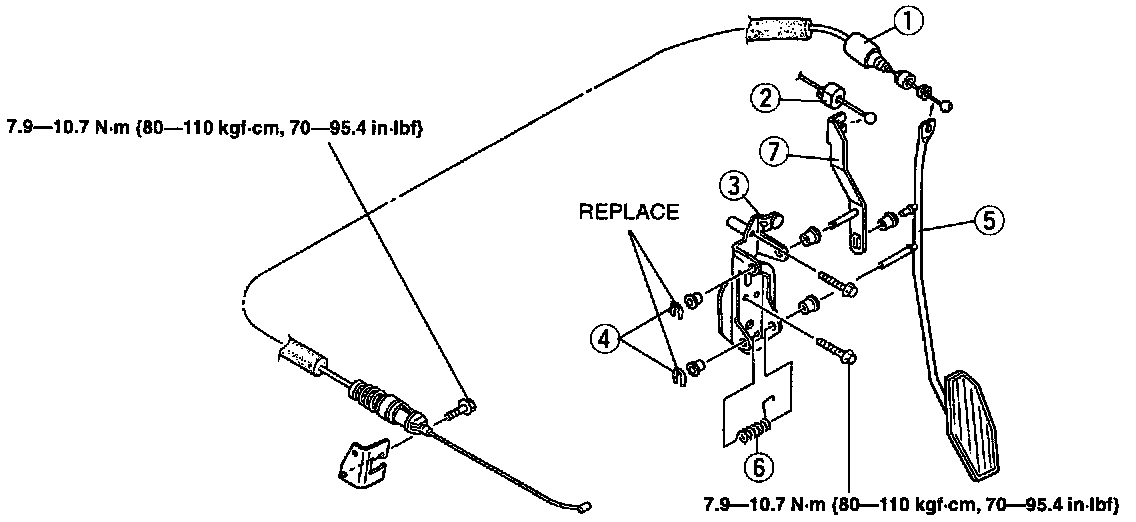

Accelerator Pedal And Cable:

1. Accelerator cable
2. Cruise actuator cable
3. Retainer
4. Clip
5. Accelerator pedal
6. Return spring
7. Bracket
