No. 6 Power Windows Work From Main Switch Only

Flowchart No. 6 Symptom Power windows (except driver's door) can be operated by power window main switches, but cannot be operated by power window subswitches

Possible cause
^ Damaged power window subswitch
^ Open or short circuit wiring harness Poor connection of connector

Remedy
1. Remove the passenger's and rear door trim.
2. Turn the ignition switch to ON.

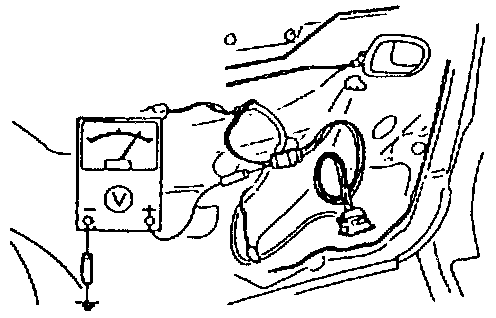

Voltmeter Connection:

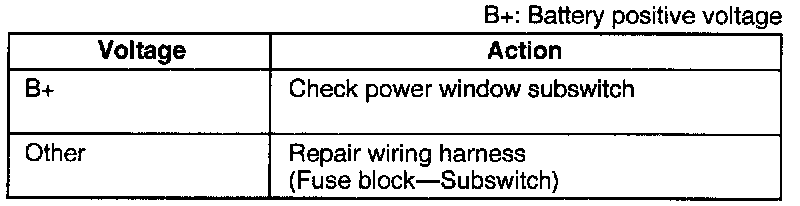

Action Chart:

3. Measure the voltage at the (B/R) terminal wire of each subswitch connector.
