Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1997
>>
Millenia L V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Flow of Diagnosis
Flow of Diagnosis

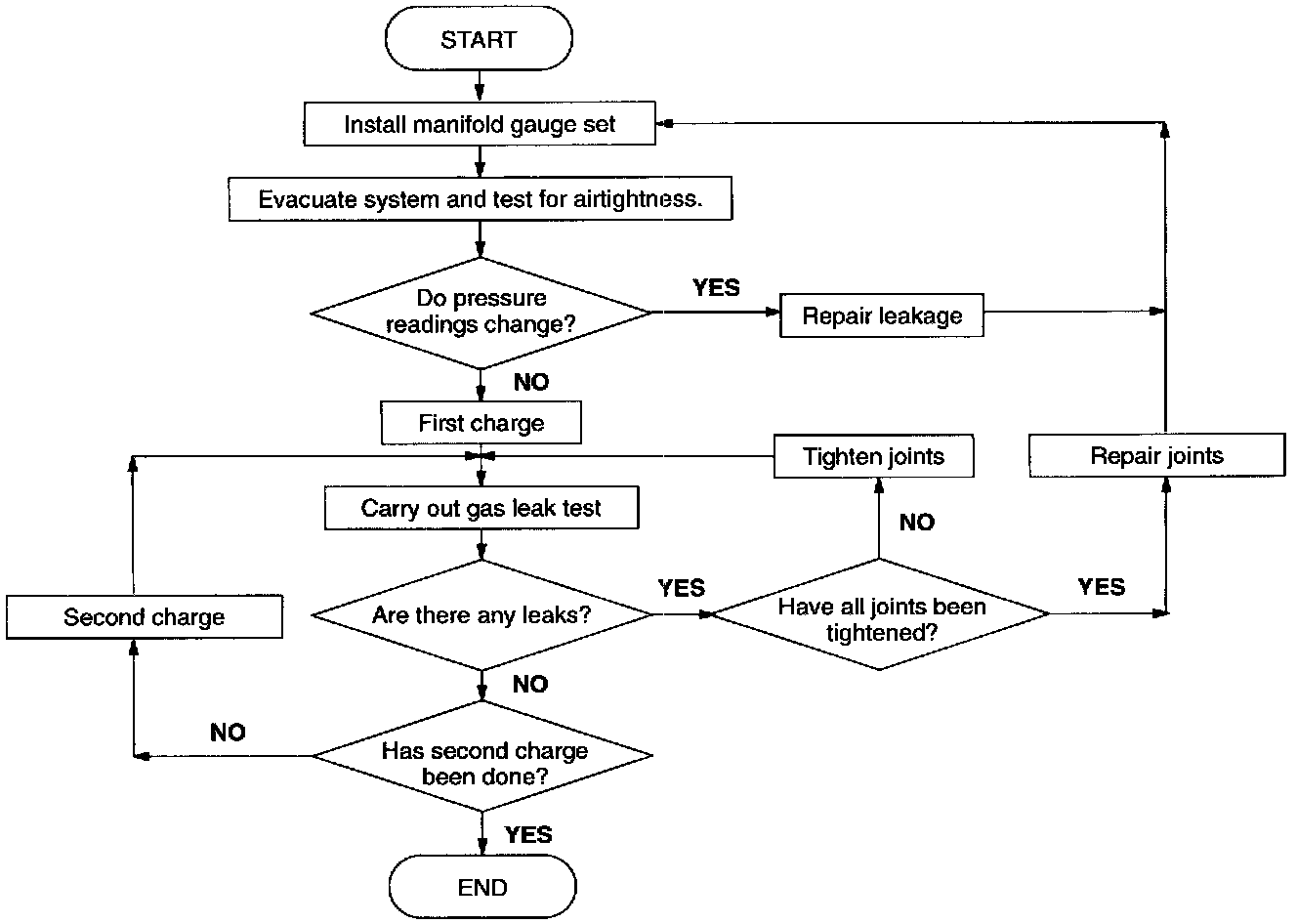

Operational flow

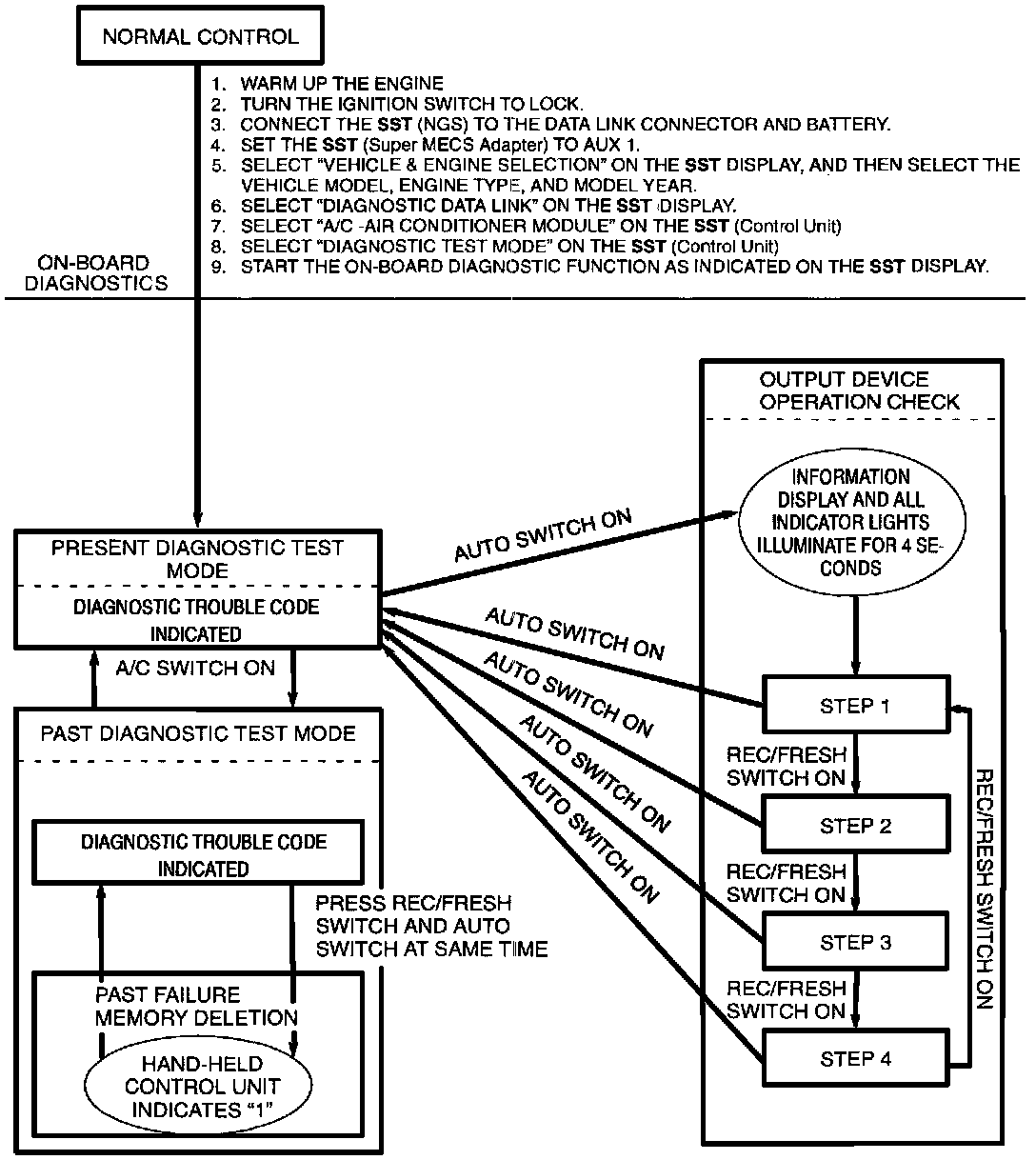

Diagnositc Flow Chart
