Ventilation Fan Motor: Service and Repair

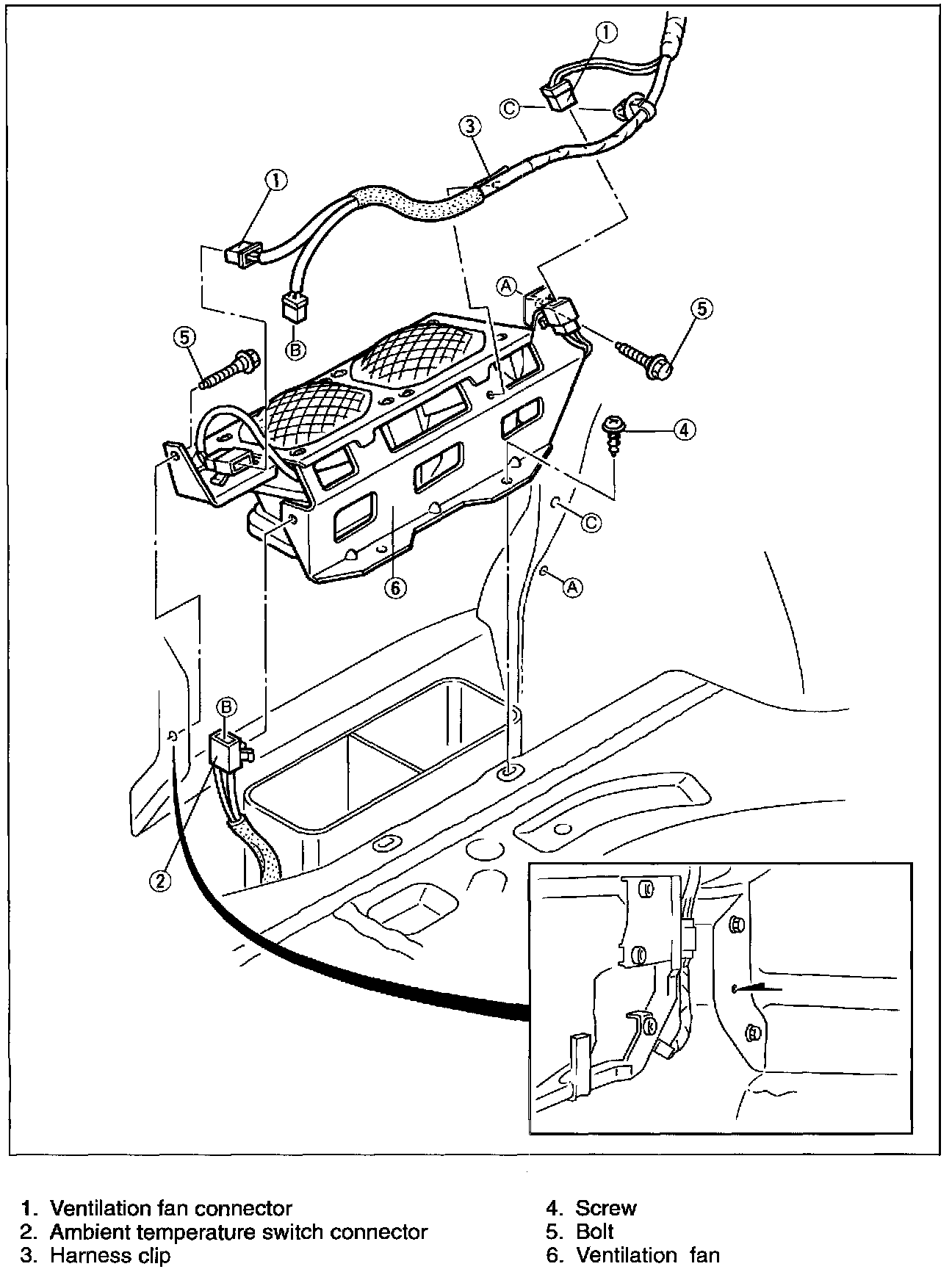

Removal / Installation
1. Remove the trunk end trim and trunk side trim (LH).
2. Remove in the order shown in the figure.
3. Install in the reverse order of removal

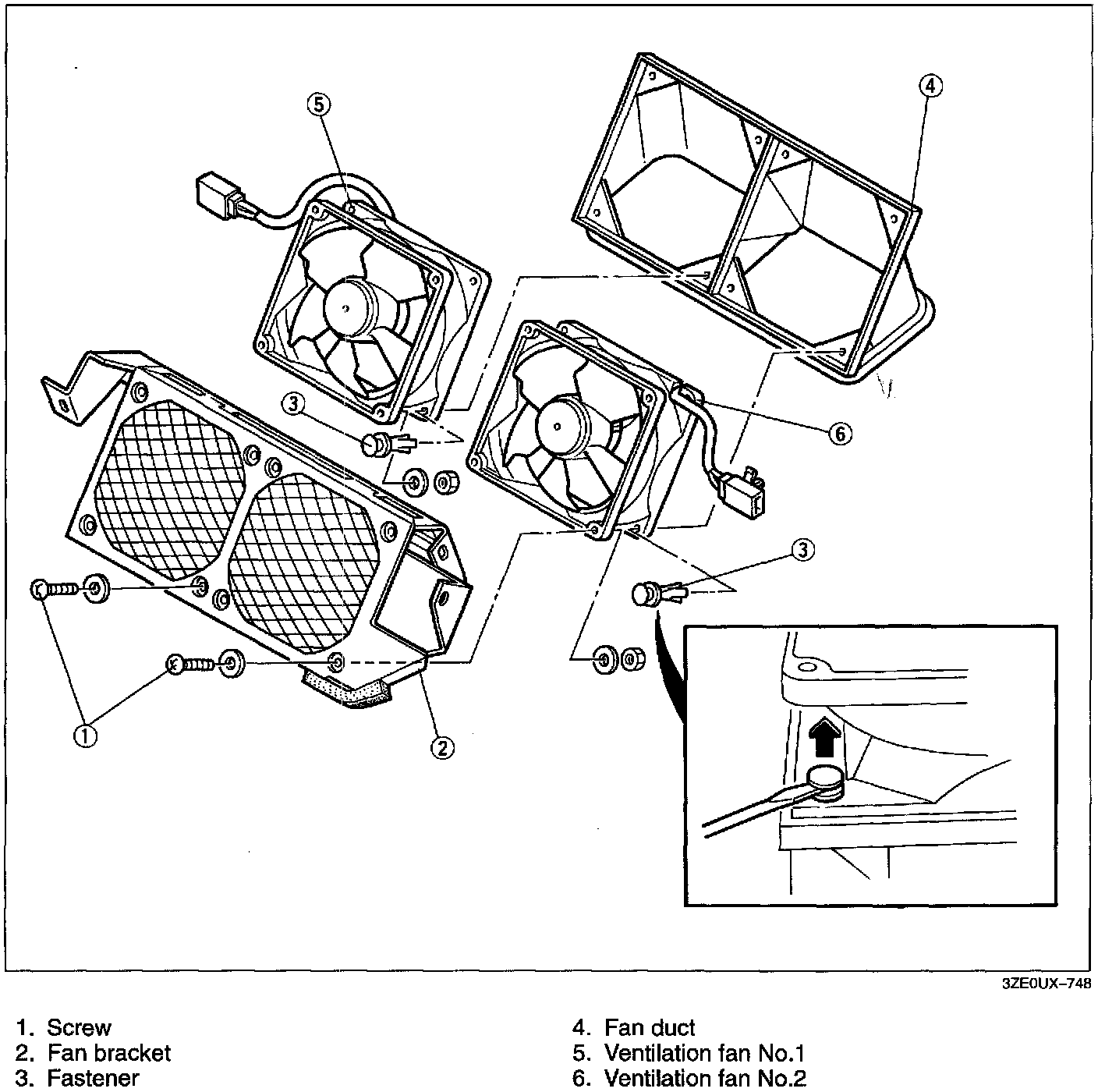

Disassembly / Assembly
1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
