Security Lamp/Indicator: Service and Repair

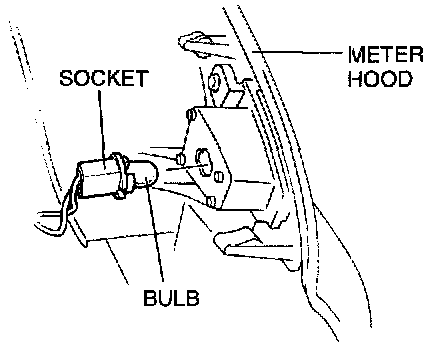

Bulb Replacement
1. Disconnect the negative battery cable.
2. Remove the meter hood.
3. Remove the socket.
4. Remove the bulb.
5. Install in the reverse order of removal.

Security light bulb: 2.7 W
