Max-Hi Relay

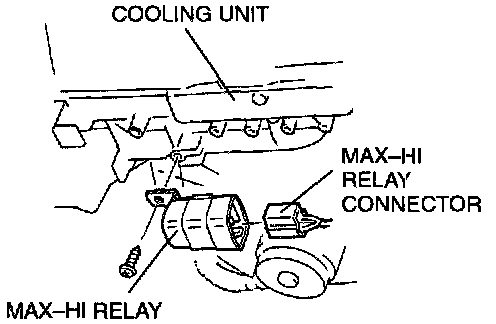

MAX-HI Relay
1. Remove the undercover.
2. Remove the MAX-HI relay.
3. Disconnect the MAX-HI relay connector.
4. Install in the reverse order of removal.
