Oscilloscope Patterns and Waveforms

WAVE FORM
1. Connect the Oscilloscope to the Powertrain Control Module at terminals 2C and 2H.

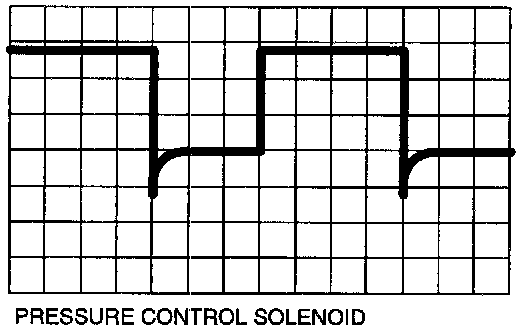

2. Inspect the wave form as shown in the figure.
