Vacuum Pump: Testing and Inspection

1. Disconnect the vacuum pump connector.

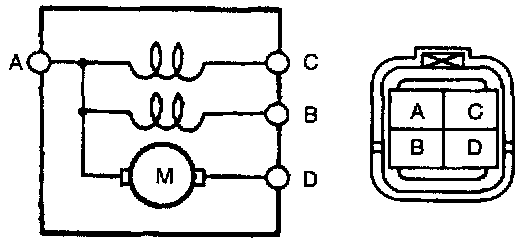

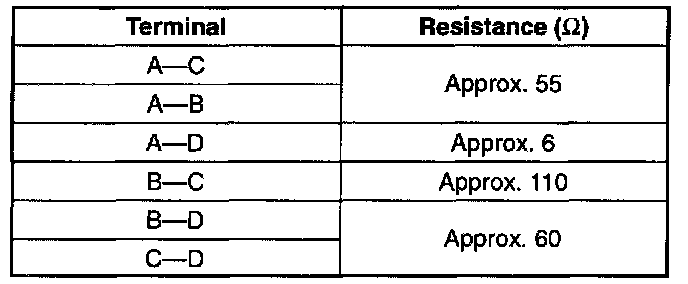

2. Measure the resistance between the vacuum pump terminals by using an ohmmeter.

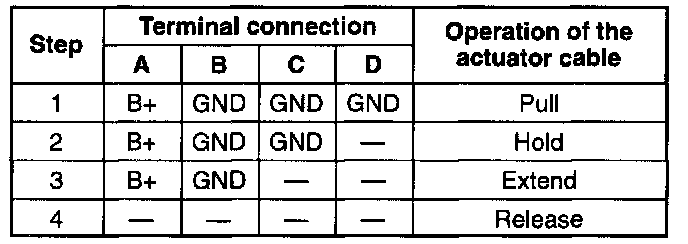

3. Connect the battery positive voltage and a ground to the terminals as shown and confirm the operation of the actuator cable.




4. If not as specified, replace the vacuum pump.
