Variable Induction Check Valve: Testing and Inspection

CHECK VALVE (1-WAY) INSPECTION
1. Remove the check valve.

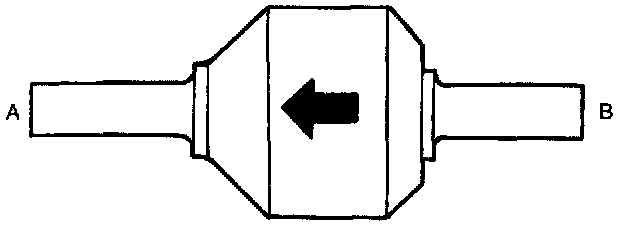

2. Blow through A and check that air flow from B.
3. Blow through B and check that air does not flow from A.
4. If not as specified, replace the check valve.
