Assembly

Part 1 Of 2:

Part 2 Of 2:

ASSEMBLY
1. Verify that all parts are clean and free of dust and other small particles.
2. Apply ATF to all parts.

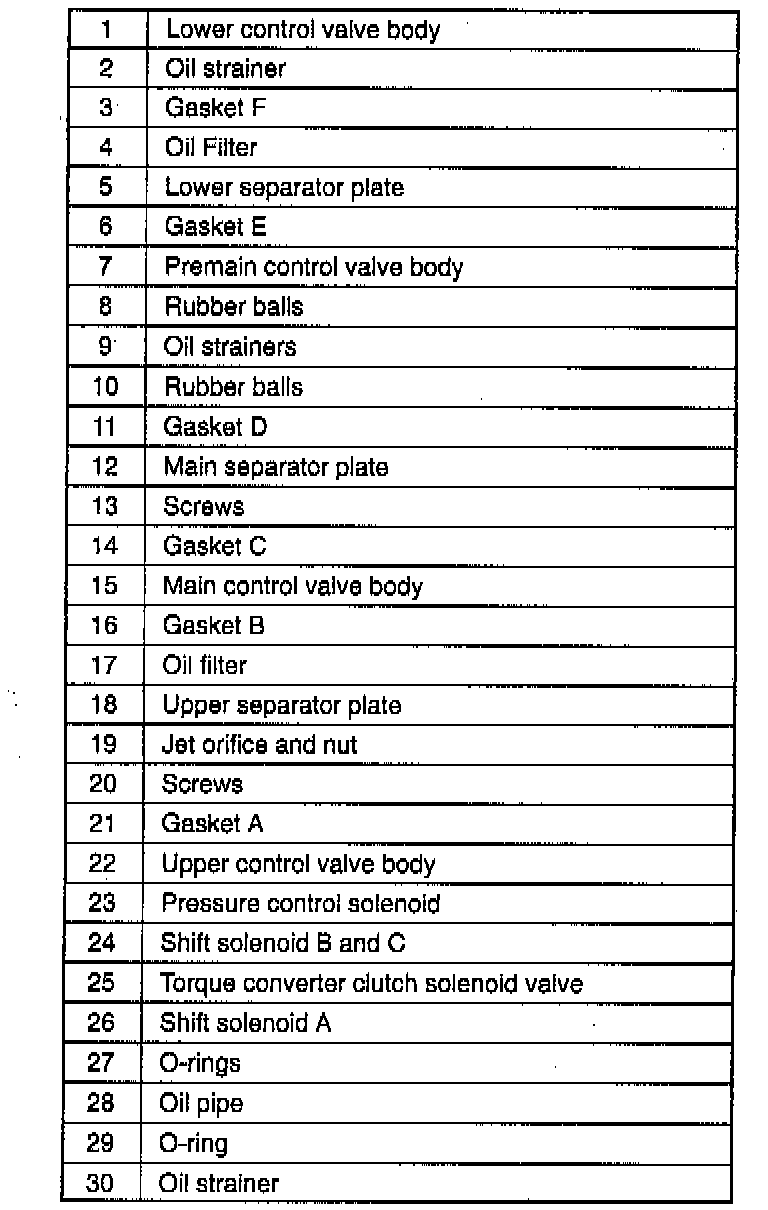

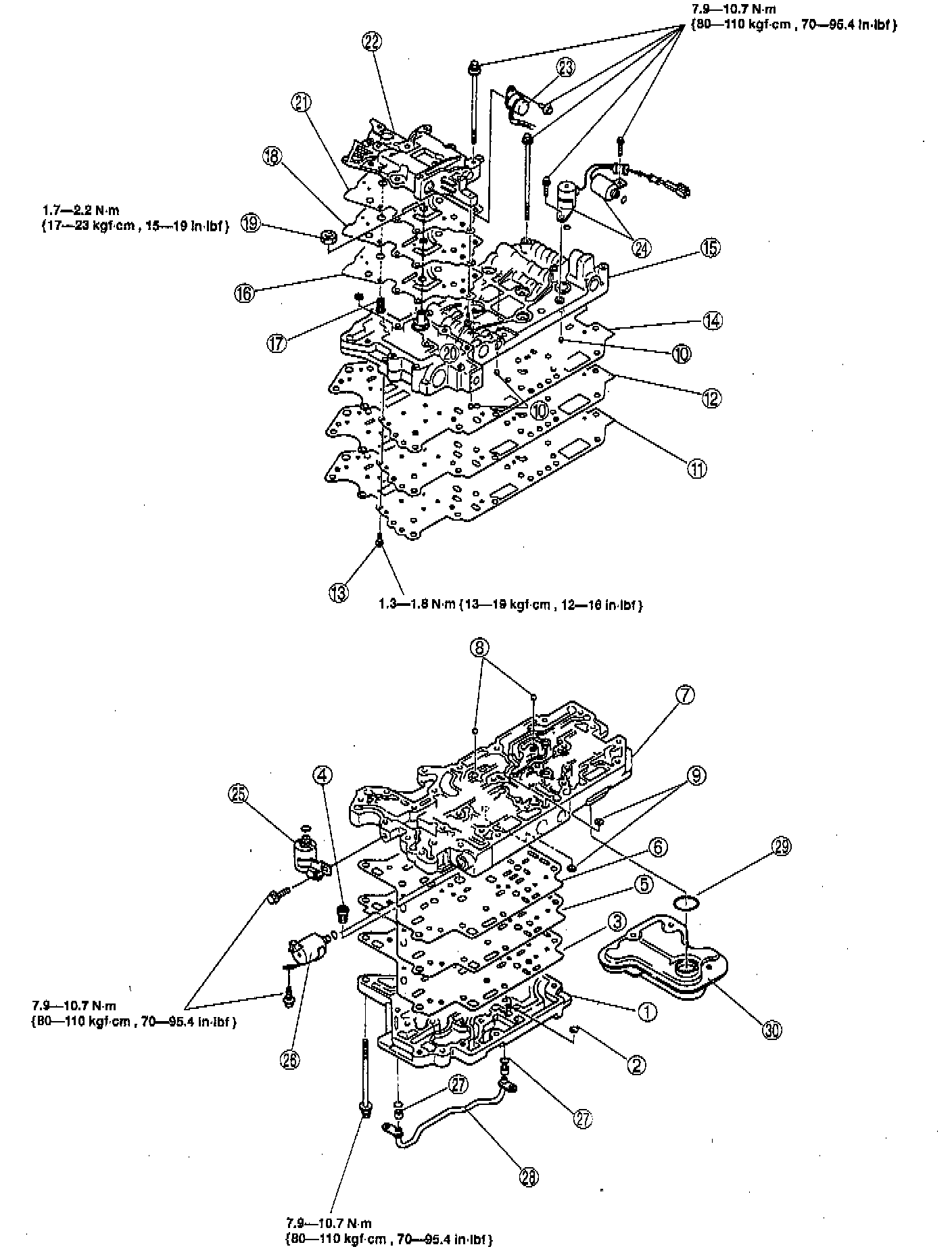

3. Assemble in the reverse order of disassembly indicated in the illustration, referring to assembly procedure.





Assembly Procedure

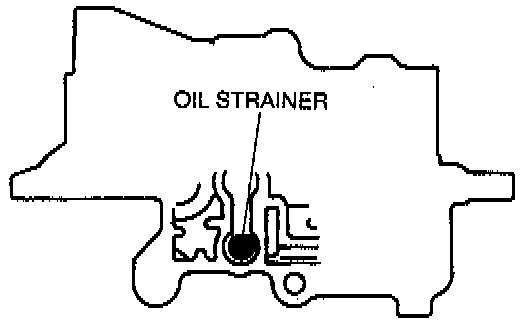

1. Install the oil strainer into the lower control valve body.

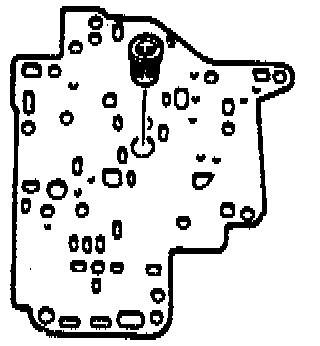

2. Set the oil filter into the lower separator plate.





3. Set the new gasket E, lower separator plate, and new gasket F on the lower control valve body. Refer to the illustration to distinguish the two gaskets.
4. Set the premain control valve body onto the lower control valve body.

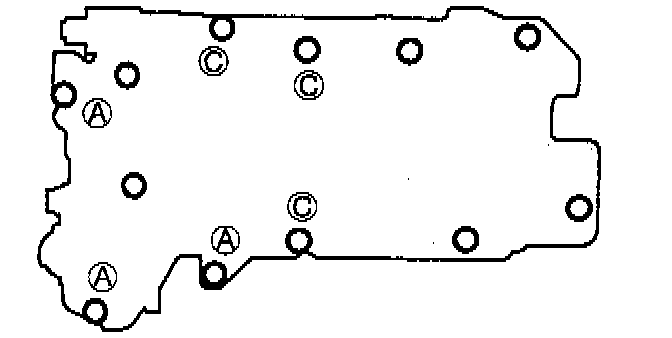

5. Install and hand-tighten the bolts shown in the illustration. Each type of bolt has a different letter on its head. Match the bolt leper with the leper stamped next to its installation hole on the valve body.





6. Install the oil strainer and rubber balls into the premain control valve body.

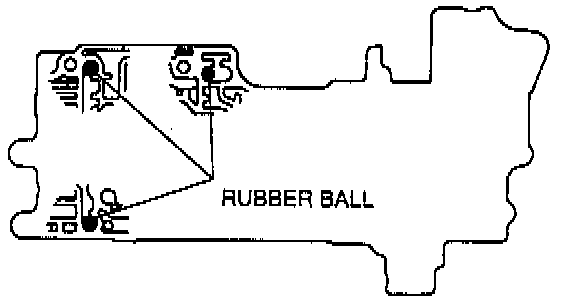

7. Install the rubber balls into the main control valve body.

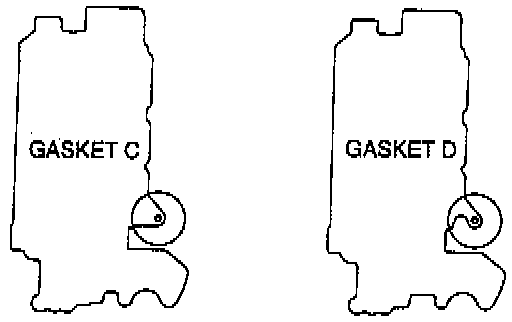

8. Set the new gasket C, main separator plate, and new gasket D on the main control valve body. Refer to the illustration to distinguish the two gaskets.
9. Tighten the screws to 1.3 - 1.8 Nm (12 - 16 inch lbs.).
10. Set the main control valve body onto the premain control valve body.

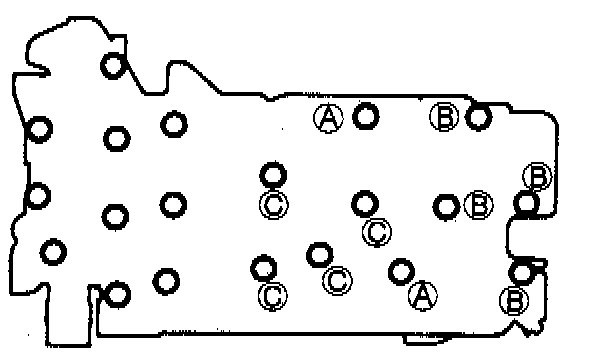

11. Install and hand-tighten the bolts shown in the illustration. Each type of bolt has a different letter on its head. Match the bolt letter with the letter stamped next to its installation hole on the valve body.

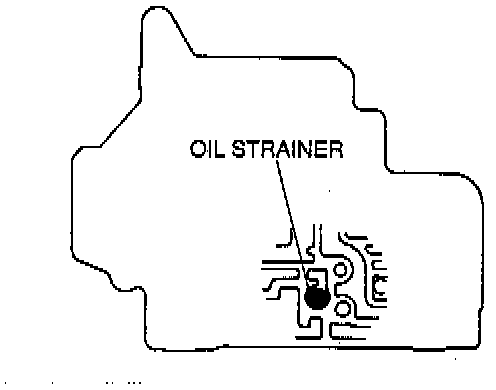

12. Install the oil strainer into the upper control valve body.
13. Set the oil filter into the upper separator plate.

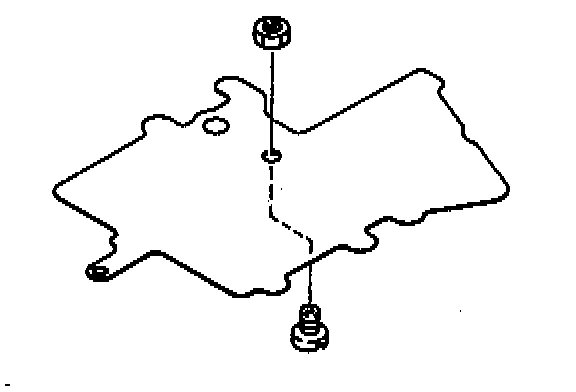

14. Install the jet orifice and nut to the upper separator plate. Tighten to 1.7 - 2.2 Nm (15 - 19 inch lbs.).

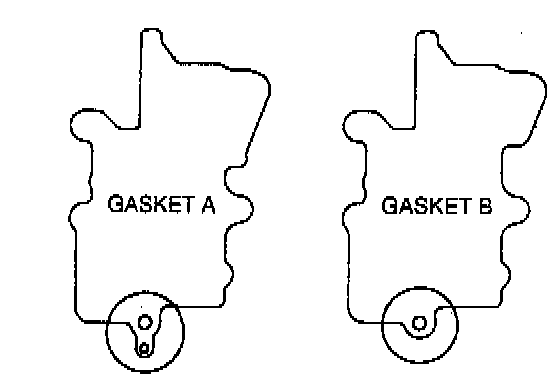

15. Set the new gasket B, upper separator plate, and new gasket A on the upper control valve body. Refer to the illustration to distinguish the two gaskets.
16. Tighten the screws to 1.3 - 1.8 Nm (12 - 16 inch lbs.).
17. Set the upper control valve body onto the main control valve body.

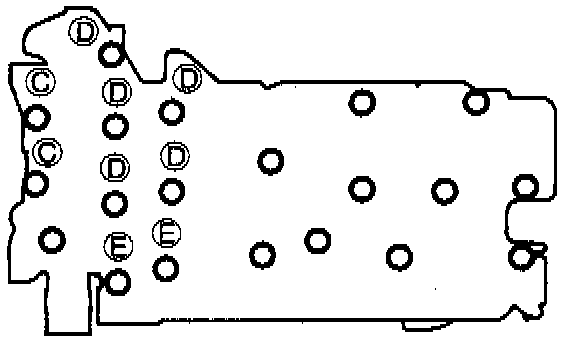

18. Install and hand-tighten the bolts shown in the illustration. Each type of bolt has a different letter on its head. Match the bolt letter with the letter stamped next to its installation hole on the valve body.
19. Tighten the Upper, main, and lower control valve body to 7.9 - 10.7 Nm (70 - 95.4 inch lbs.).
20. Apply ATF to new O-rings and install them onto the solenoid valve.
21. Install the solenoid valve. Tighten to 7.9 - 10.7 Nm (70 - 95.4 inch lbs.).
22. Apply ATF to new O-rings and install them onto the oil pipe.
23. Install the oil pipe. Tighten to 7.9 - 10.7 Nm (70 - 95.4 inch lbs.).
24. Apply ATF to new O-rings and install them onto the oil strainer.
25. Install the oil strainer. Tighten to 7.9 - 10.7 Nm (70 - 95.4 inch lbs.).
