Shift Linkage: Service and Repair

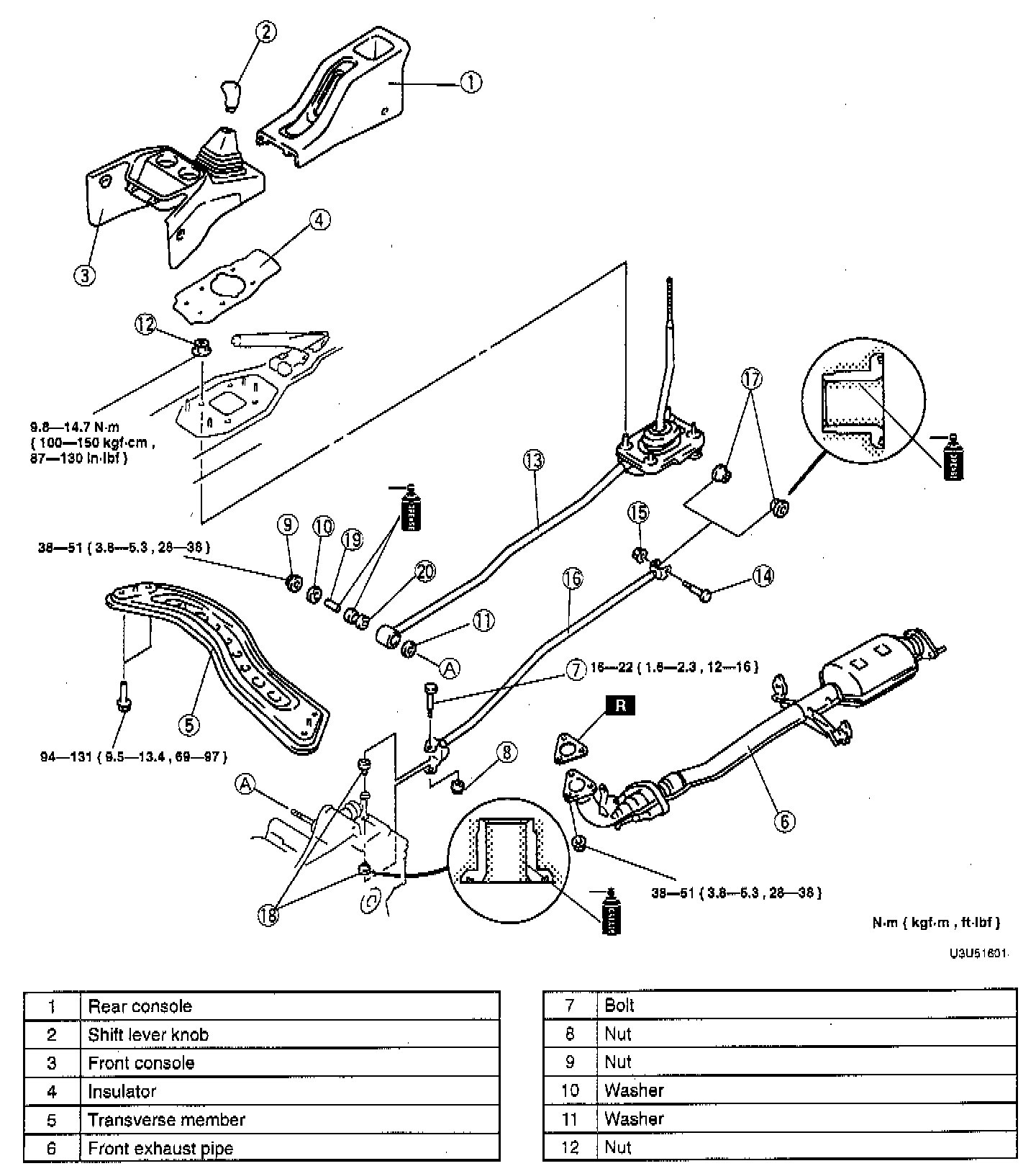

Part 1 Of 2:

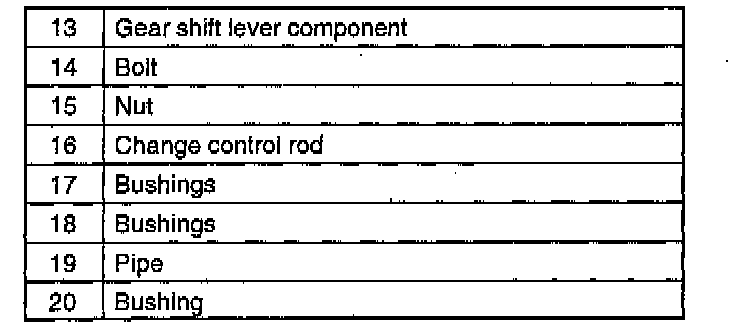

Part 2 Of 2:
DISASSEMBLY / ASSEMBLY
1.
Disassemble in the order indicated in the illustration.
2.
Assembly in the reverse order of disassembly indicated in the illustration.
