Secondary Coil Winding
1. Disconnect the high-tension leads.

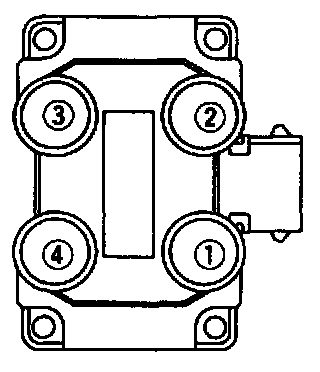

2. Measure the resistance by using an ohmmeter. From lead hole 1 to 4 and lead hole 2 to 3.
Specification: 11.5 - 15.5 ohms [20°C {68°F}]
If not as specified, replace the ignition coil.
1. Disconnect the high-tension leads.
2. Measure the resistance by using an ohmmeter. From lead hole 1 to 4 and lead hole 2 to 3.
Specification: 11.5 - 15.5 ohms [20°C {68°F}]
If not as specified, replace the ignition coil.
