Spot Lamp: Service and Repair

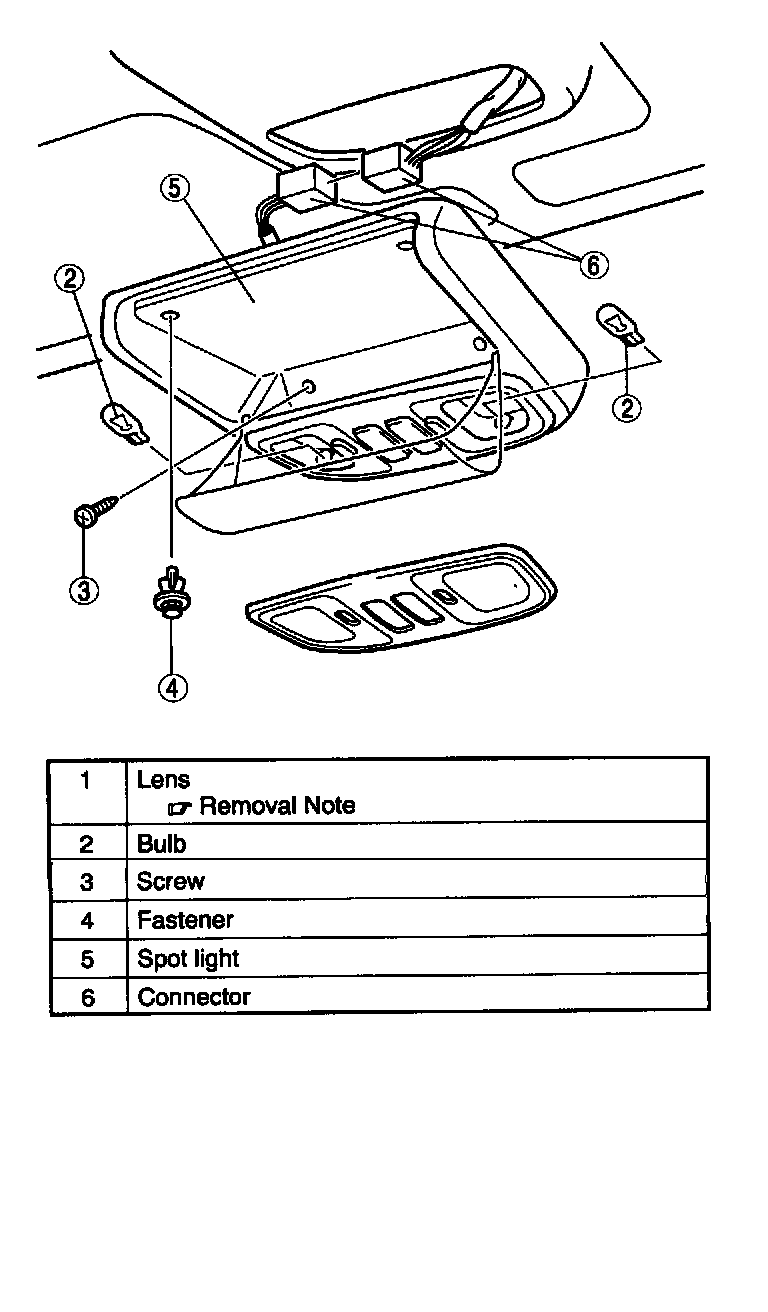

SPOT LIGHT REMOVAL/INSTALLATION





1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

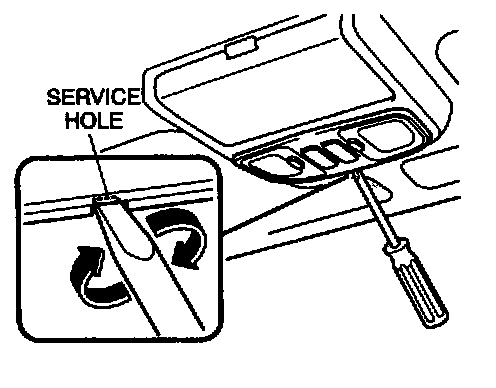

Lens Removal Note
1. Insert a tape-wrapped, flathead screwdriver into the service hole.
2. Twist the flathead screwdriver indicated by the arrow to remove the lens.
