Brake Proportioning/Combination Valve: Testing and Inspection

PROPORTIONING BYPASS VALVE INSPECTION

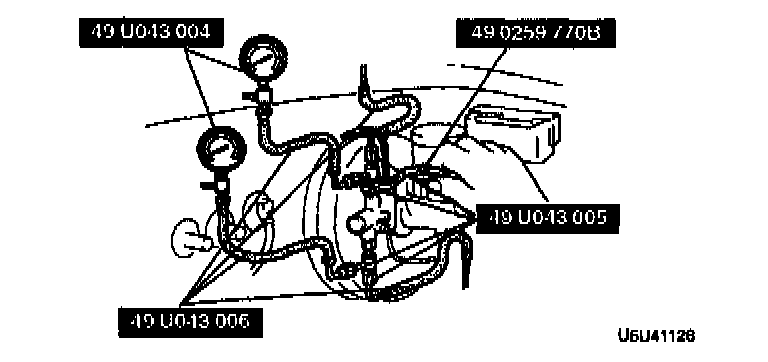

1. Connect the SSTs and the adapters to the brake pipes as shown.
2. Bleed the air from the brake system.

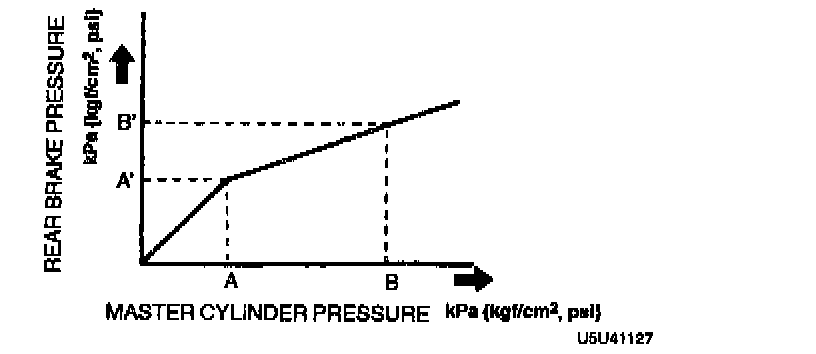

3. Measure the fluid pressure from the master cylinder and to the rear brakes.
^ If not as specified, replace the valve component.

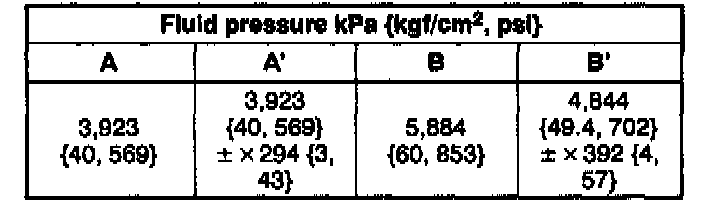

Specification
