Brake Light Bulb: Service and Repair
1.
Disconnect the negative battery cable.
2.
Remove the trunk end trim.
3.

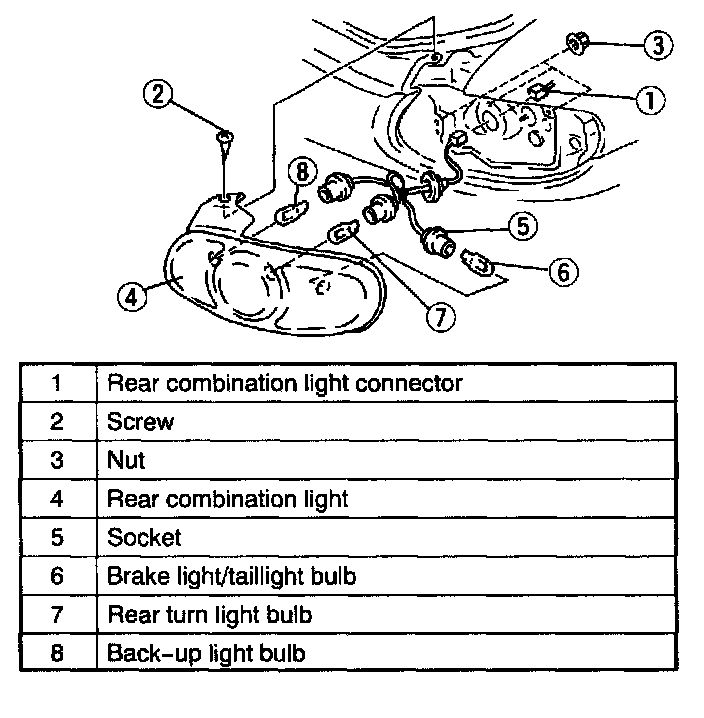

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
