Accelerator Pedal: Service and Repair

ACCELERATOR PEDAL REMOVAL/INSTALLATION

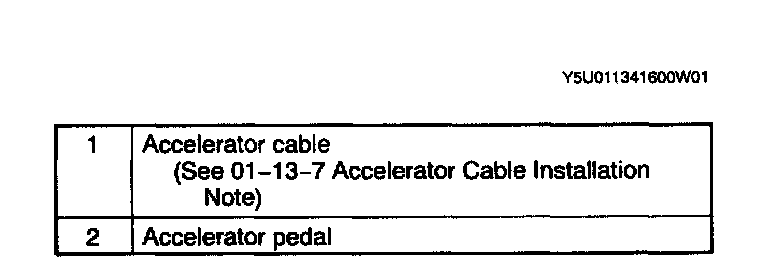

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
Tightening torque: 7.9 - 10.7 Nm (80 - 110 kgf-cm, 69.5 - 95.4 inch lbs.)

Accelerator Cable Installation Note
1. Carry out the "ACCELERATOR CABLE INSPECTION/ADJUSTMENT" procedure after installing the accelerator cable.

ACCELERATOR CABLE INSPECTION/ADJUSTMENT
1. Verify that the throttle valve is at the closed throttle position.

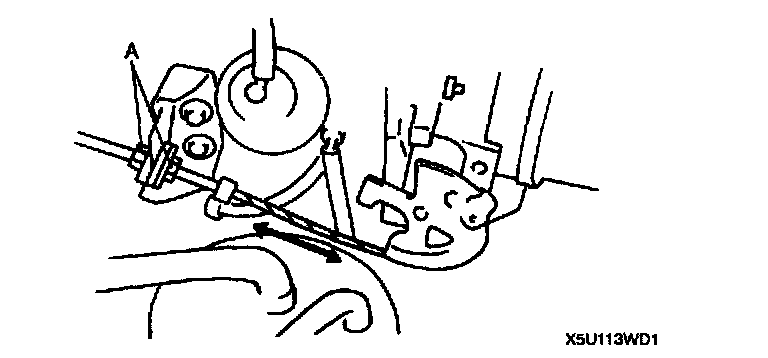

2. Measure the free play of the accelerator cable. If not within the specification, adjust by turning locknuts A.
Free play: 1 - 3 mm (0.04 - 0.11 inch)
Tightening torque: 9.9 - 14.0 Nm (115 - 11.5 kgf-m, 7.3 - 10.0 ft. lbs.)
