Water Pump: Service and Repair

WATER PUMP REMOVAL/INSTALLATION
1. Remove the air cleaner.
2. Remove the timing belt.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

P/S Oil Pump Removal Note
1. Remove the P/S oil pump with the oil hose still connected.
2. Position the P/S oil pump so that it is out of the way.

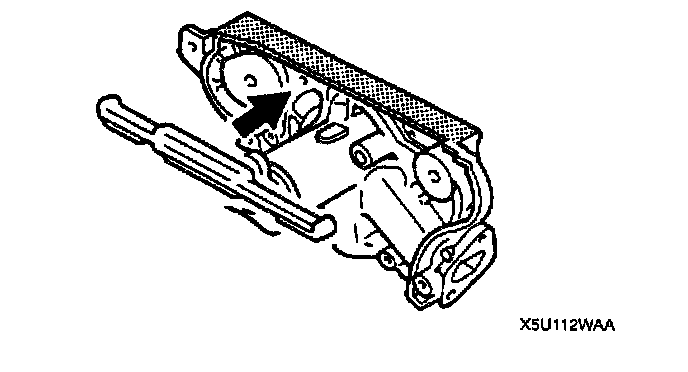

Water Pump Installation Note





1. Install the new rubber seal with the bonding agent.
