Seals and Gaskets: Service and Repair

OIL SEAL (TRANSAXLE) REPLACEMENT [GF4A-EL]
1. Drain the ATF.
2. Remove the drive shaft and joint shaft.
3. Remove the oil seal.

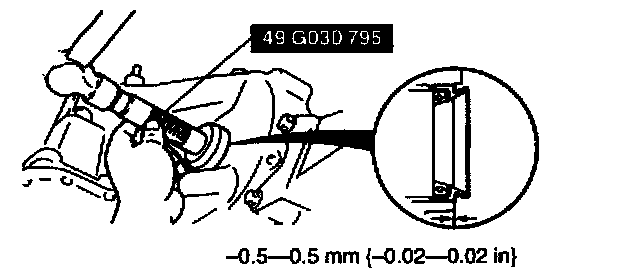

4. Using the SST and a hammer, tap a new oil seal in evenly until the SST contacts the transaxle case.
5. Coat the lip of the oil seal with ATF.
6. Install the drive shaft and joint shaft.
- Add ATF to the specified level.
7. Carry out the mechanical system test.
