Headliner: Service and Repair

1. Disconnect the negative battery cable.
2. Turn the seaming welt and weatherstrip over.

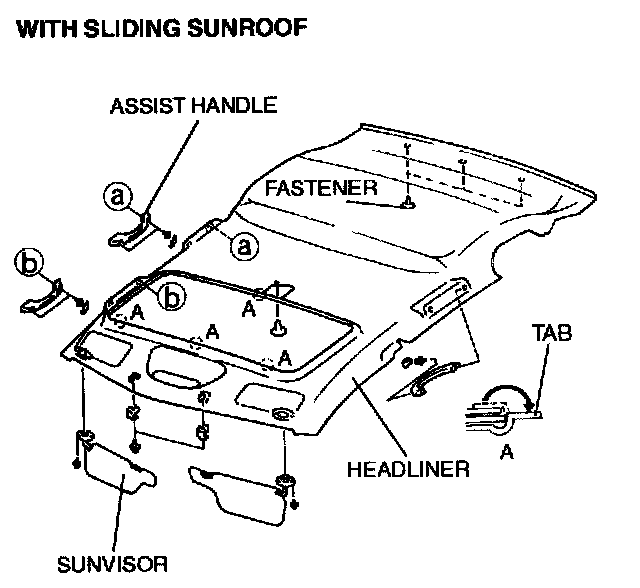

With Sliding Sunroof:

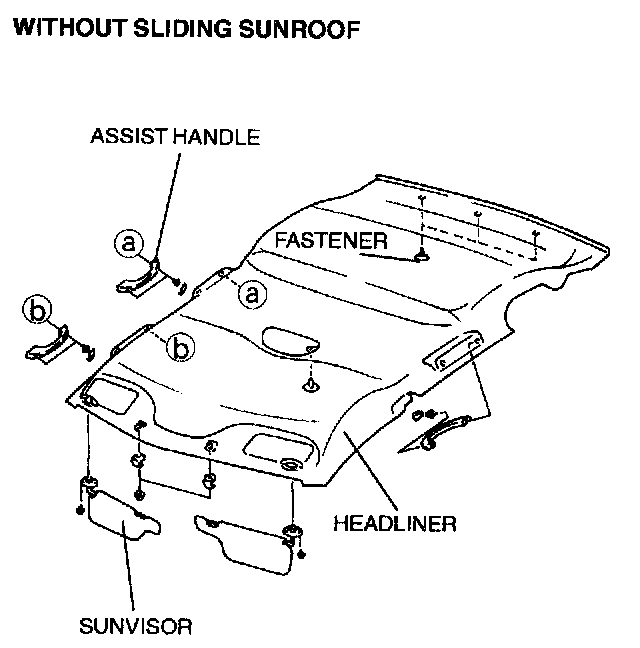

Without Sliding Sunroof:

3. Remove the A-pillar trims.
4. Remove the B-pillar upper trims.
5. Remove the C-pillar trims.
6. Remove the interior and map light if not equipped with a sliding sunroof.
7. Remove the map light and interior light if equipped with a sliding sunroof.
8. Remove the screws then remove the sunvisor and assist handle.
9. Fold tabs A up if equipped with a sliding sunroof.
10. Remove the fasteners.

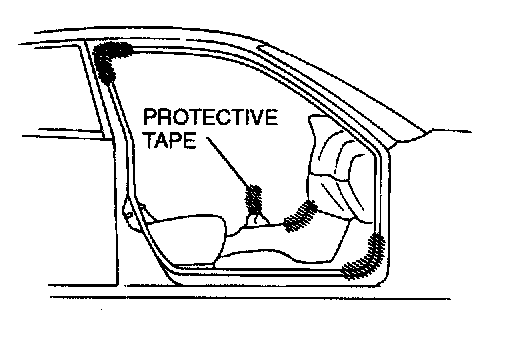

CAUTION: To protect the trim, seaming welt, etc. from scratches when removing the headliner from the vehicle, affix protective tape to the console, shift lever knob and door frame.

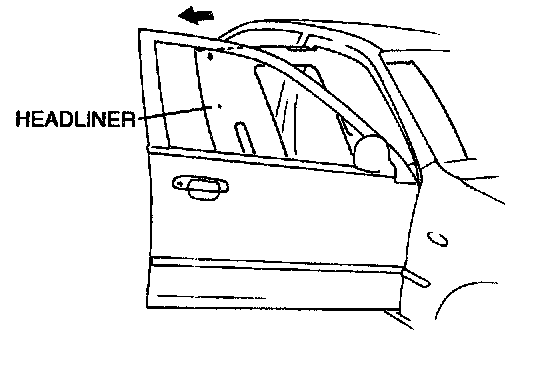

11. Remove the headliner diagonally from the passenger-side front door frame.
12. Install in the reverse order of removal.
