Child Seat Tether Attachment: Service and Repair

Canadian Model

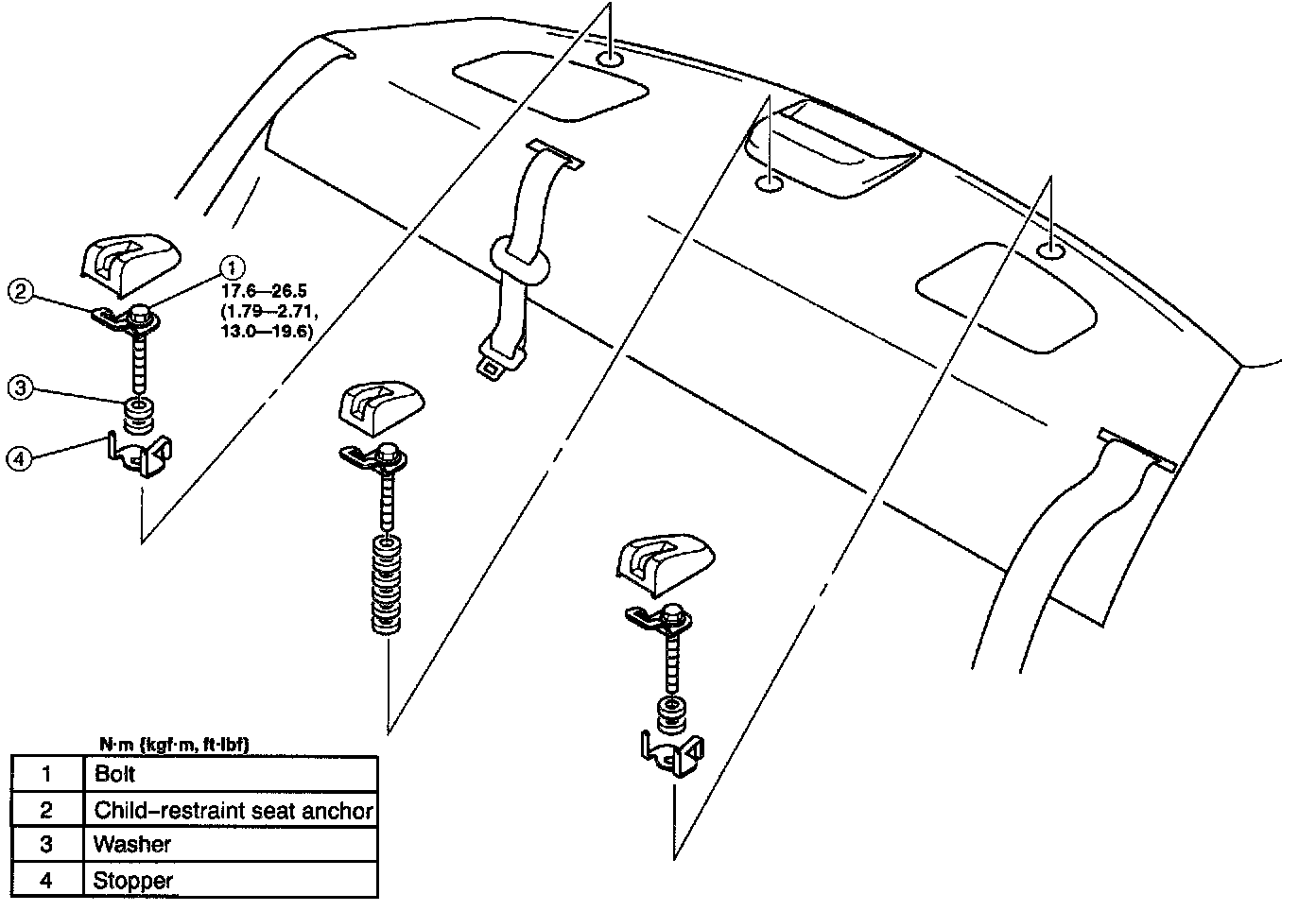

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
