Center Mounted Brake Lamp: Service and Repair

In-Vehicle Type
1. Disconnect the negative battery cable.
2. Remove the rear package trim.

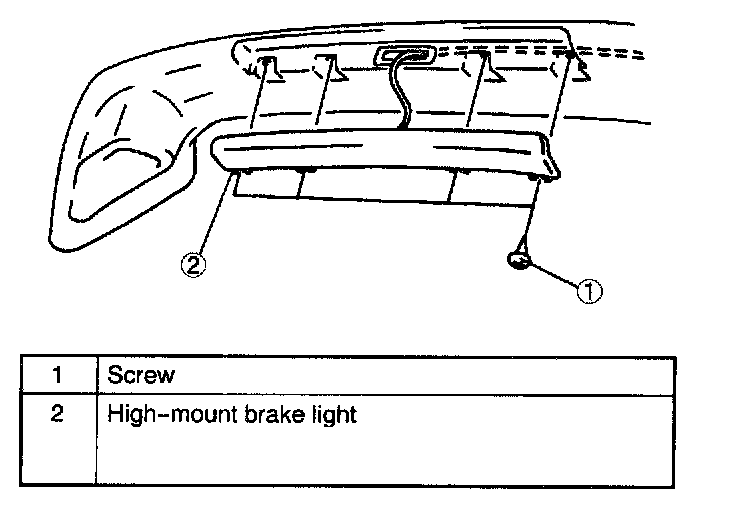

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

Rear Spoiler Type
1. Disconnect the negative battery cable.
2. Remove the rear spoiler.




3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

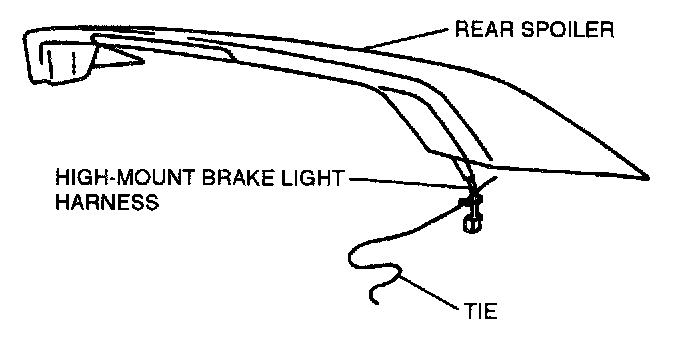

High-mount brake light removal note
1. Tie a string to the end of the connector of the high-mount brake light beforehand so that the connector can be passed easily through the rear spoiler during installation.
