A1 & 2 - Starting System
A1 & 2 - Starting System

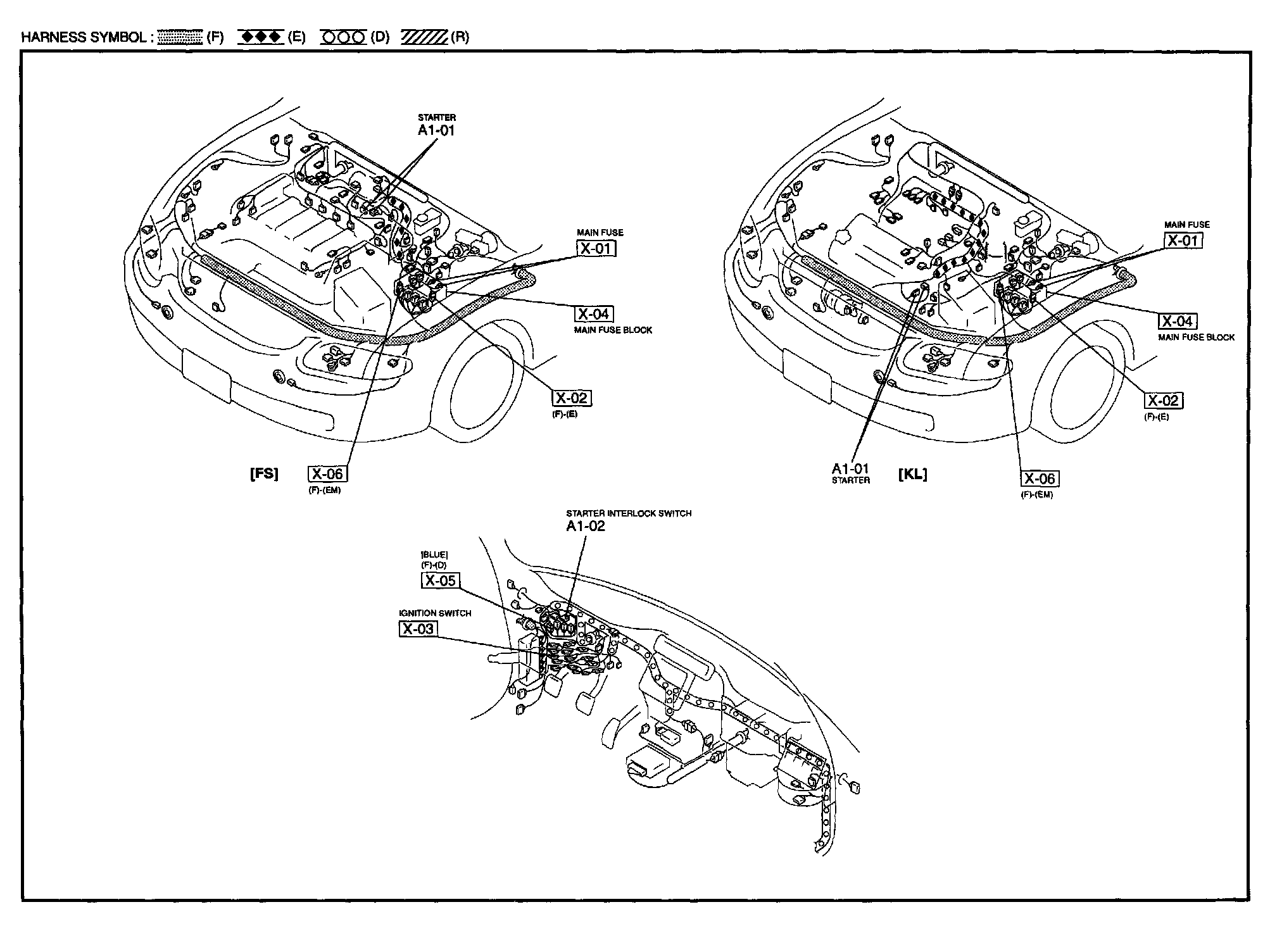

A-1 - Starting System (MTX) Harness / Connector Symbols:
A-2 - Starting System (MTX) Harness / Connector Symbols:
