J-1 - Audio System (Standard)
J-1 - Audio System (Standard)

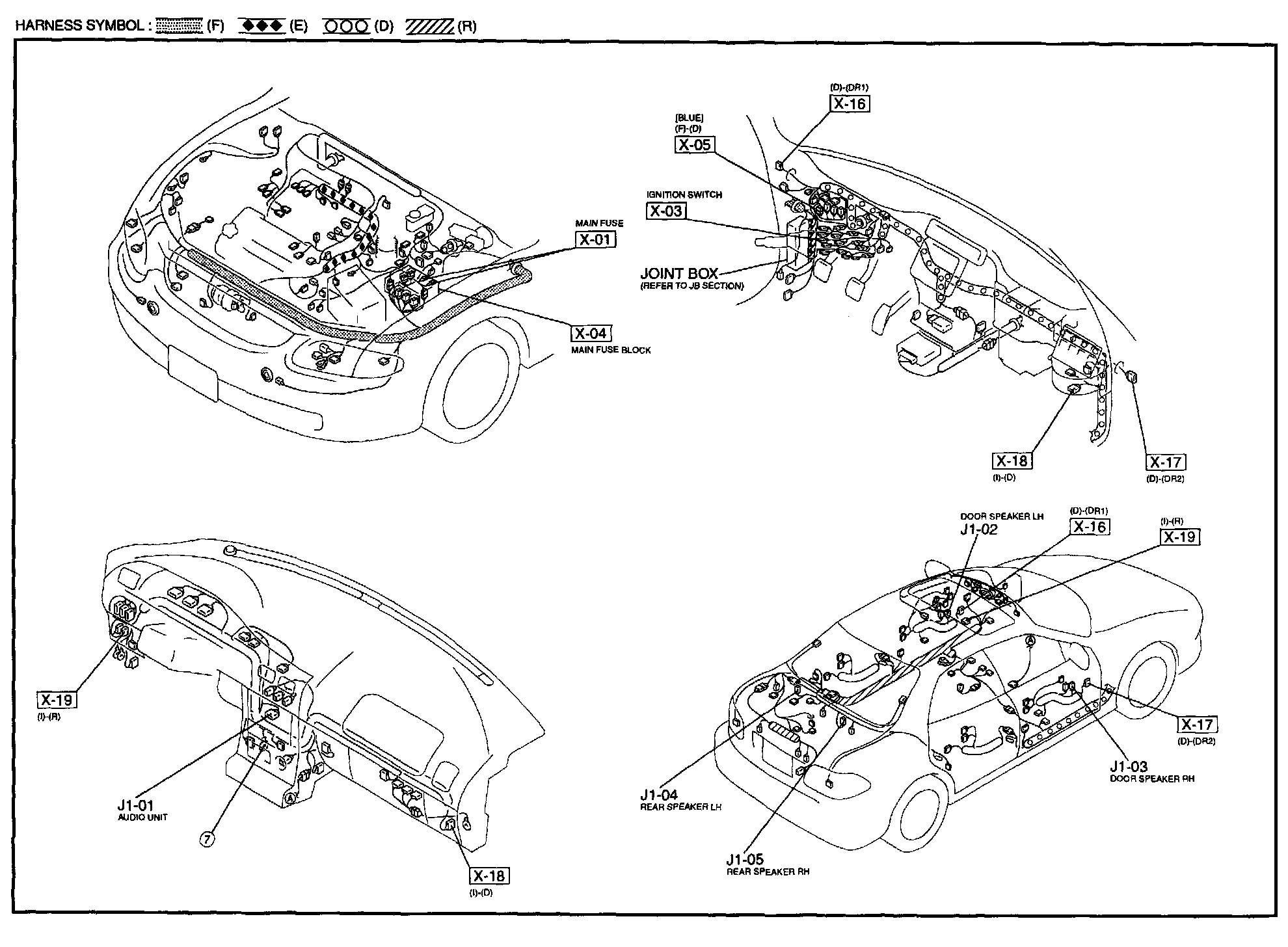

J-1 - Audio System (Standard Type) Harness / Connector Symbols:
