Harness Locations
Harness Locations

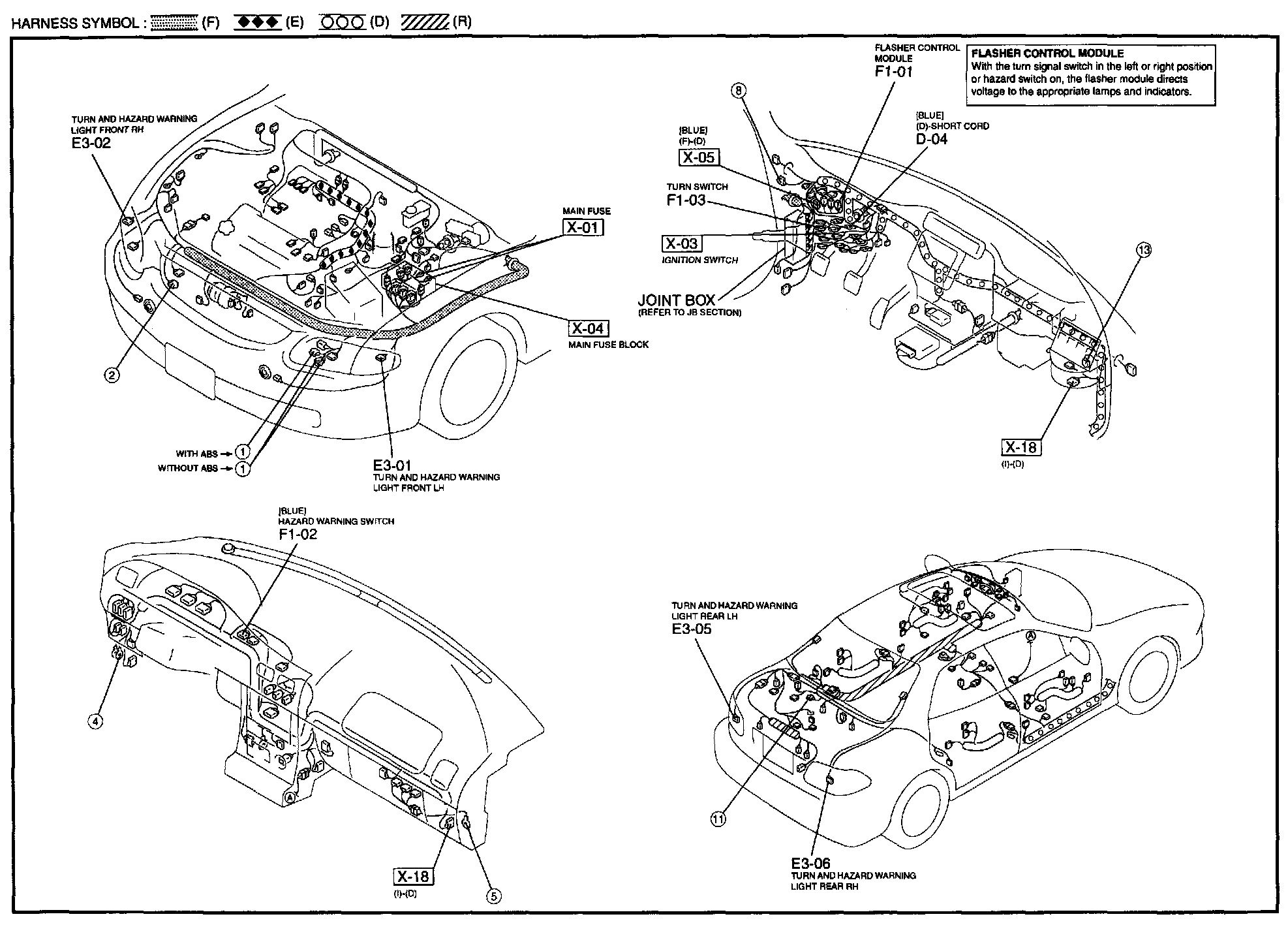

F-1 - Turn And Hazard Warning Light Harness / Connector Symbols:
