Connector Locations
Connector Locations

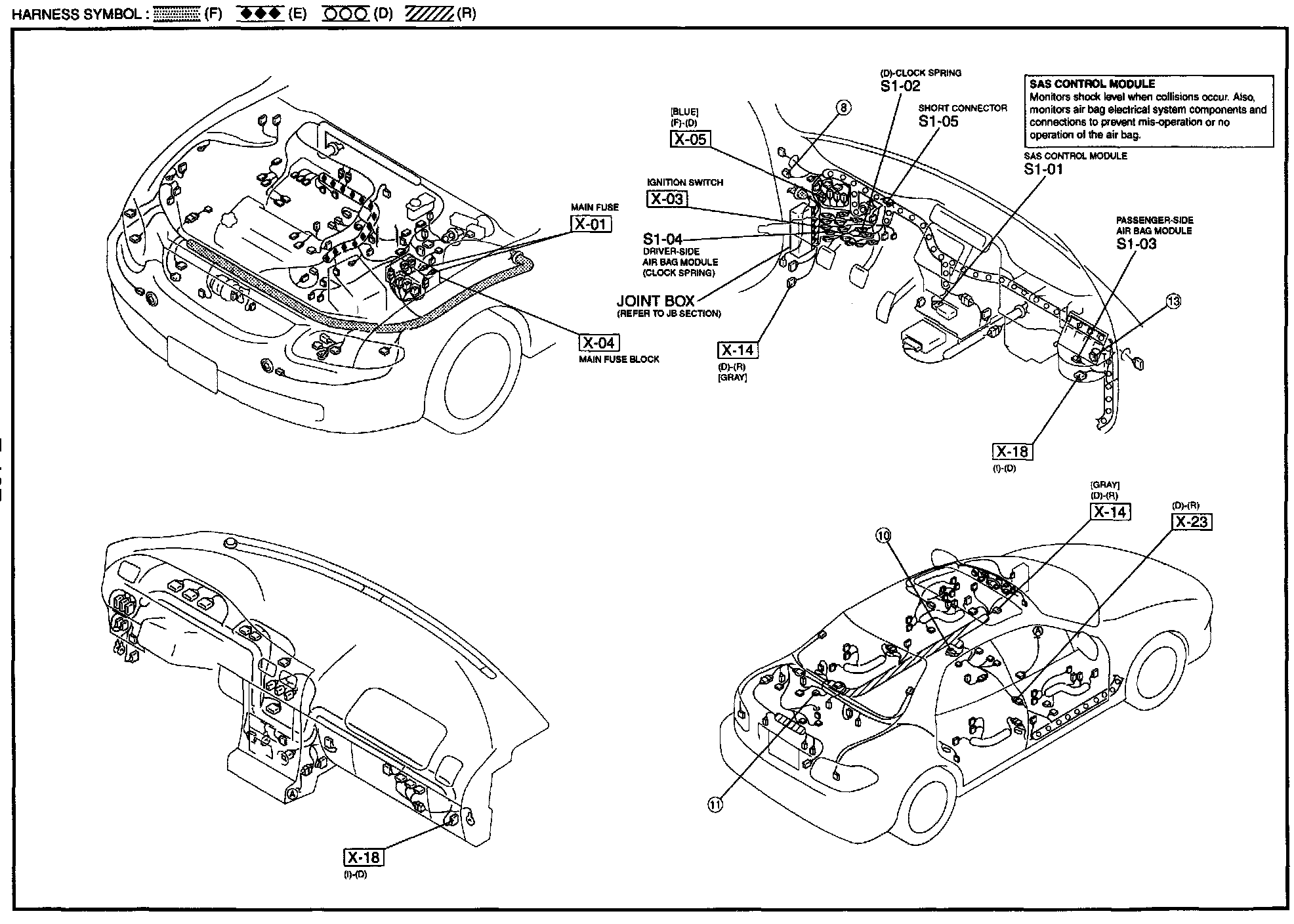

S-1 - Air Bag System Harness / Connector Symbols:

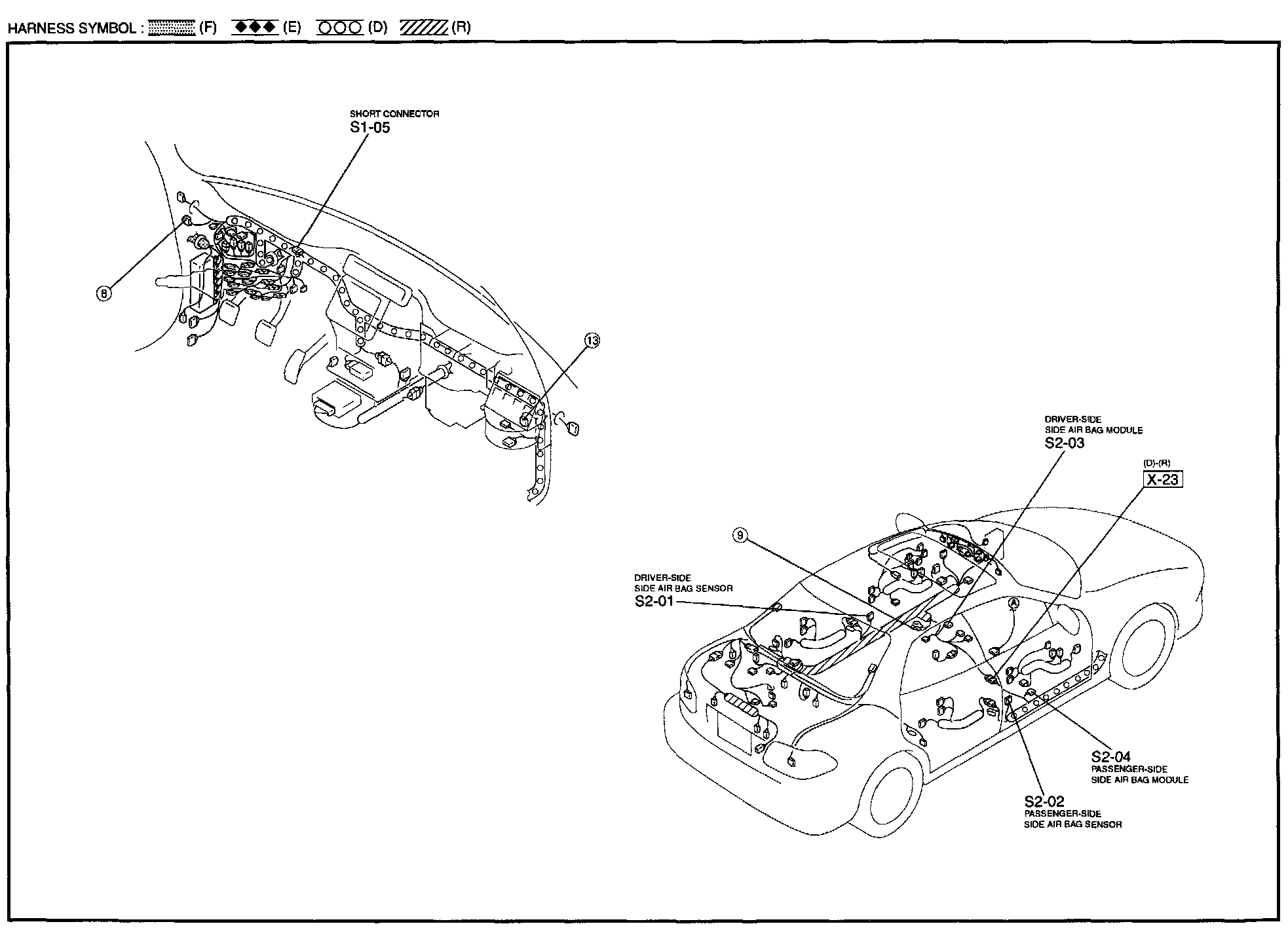

S-2 - Side Air Bag System Harness / Connector Symbols:
