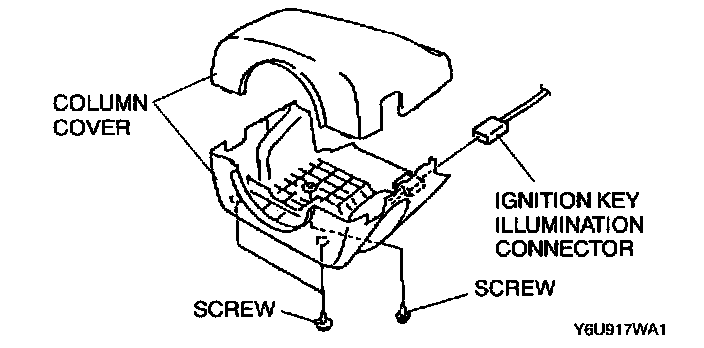

Column Cover
Column Cover
1.
Remove the screws to remove the column cover.
2.
Disconnect the ignition key illumination connector.
3.
Install in the reverse order of removal.
