Rear Bumper: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the rear combination light.

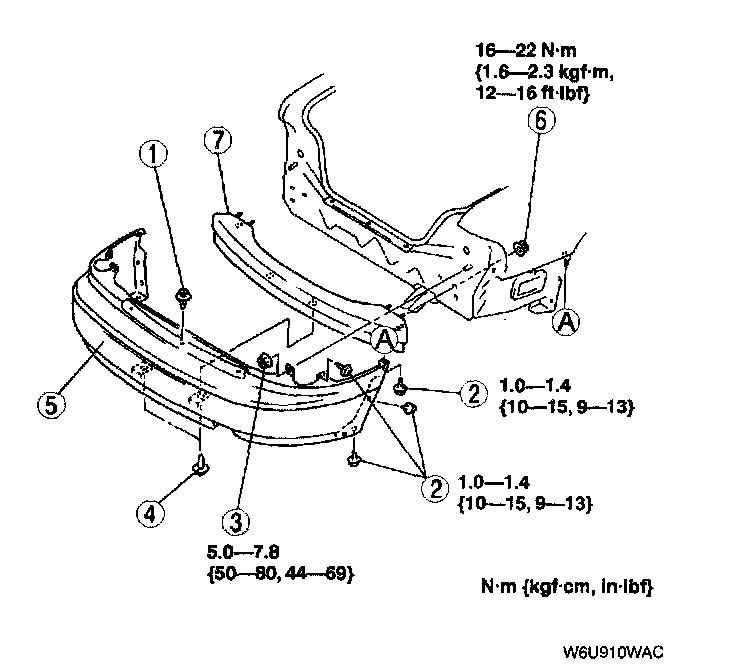

3. Remove in the order as indicated below.
1. Fastener A
2. Screw
3. Nut A
4. Fastener B
5. Rear bumper
6. Nut B
7. Rear bumper reinforcement

4. Install in the reverse order of removal.
