Center Mounted Brake Lamp: Service and Repair

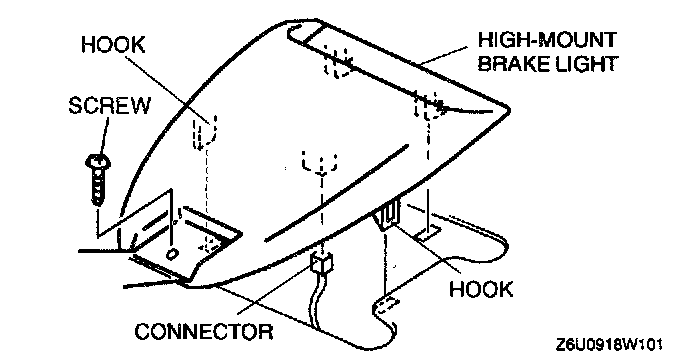

1. Disconnect the negative battery cable.
2. Open the cover and remove the screw.




3. Push the hooks of the high-mount brake light to remove the light.
4. Disconnect the connector.
5. Install in the reverse order of removal.
