Home >> Mazda >> 2001 >> 626 LX L4-2.0L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Diagrams

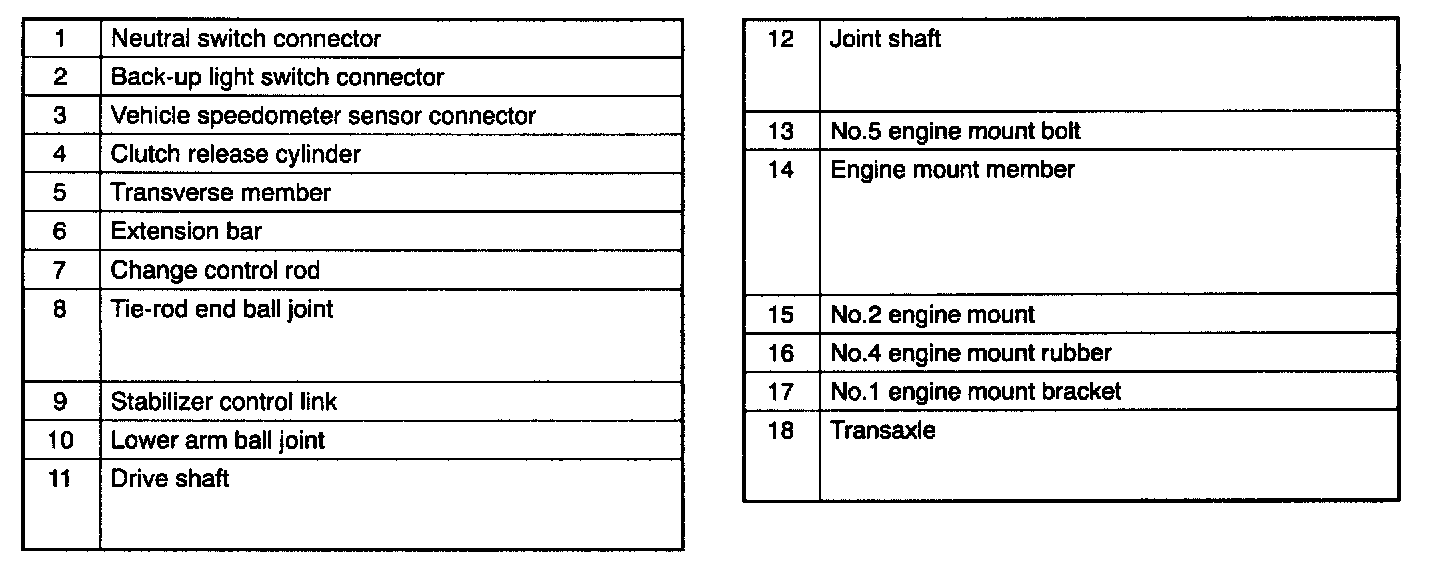

Manual Transmission/Transaxle: Diagrams

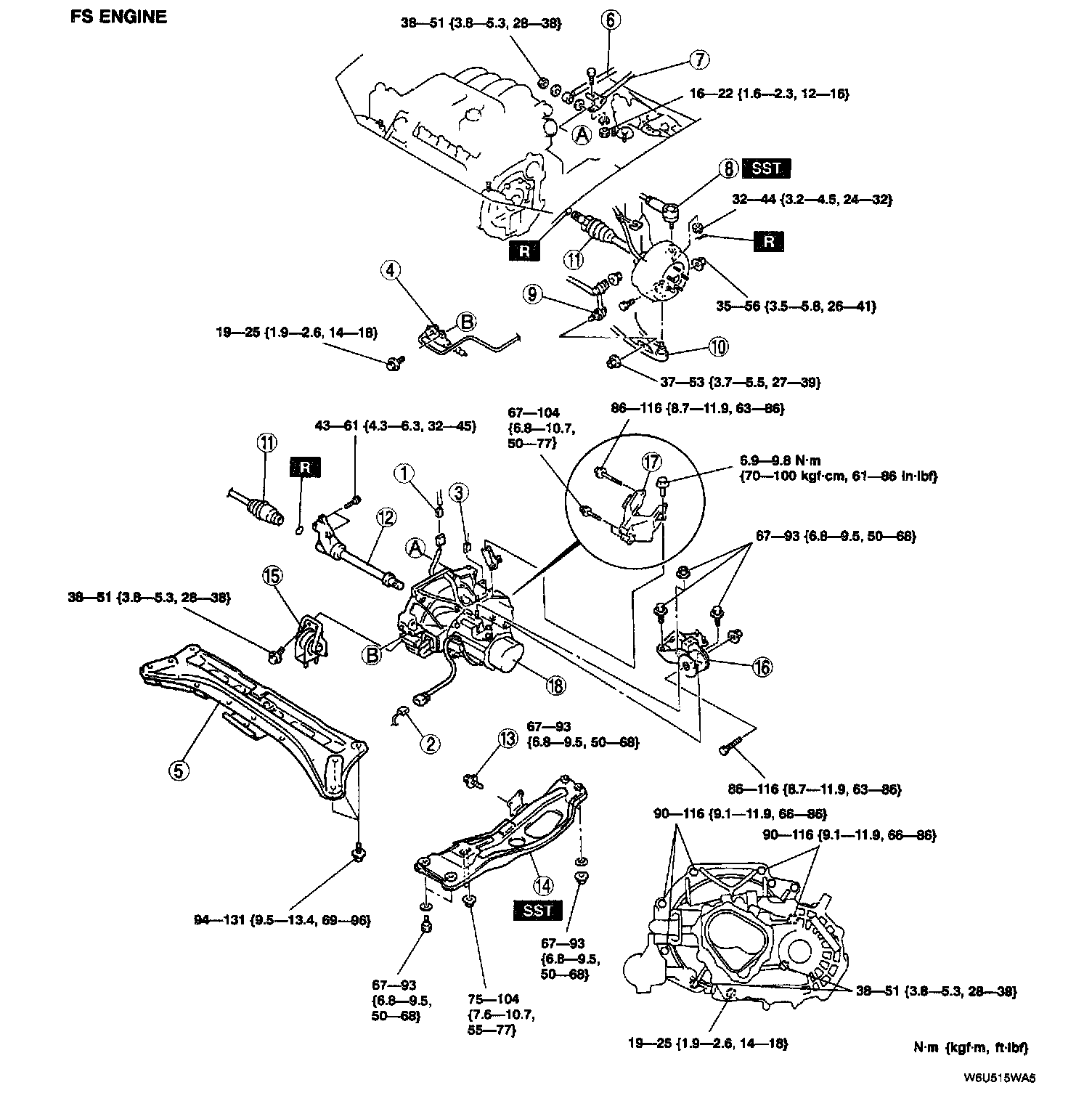

FS ENGINE





1 of 2





2 of 2
