Rear Seat
Rear Seat

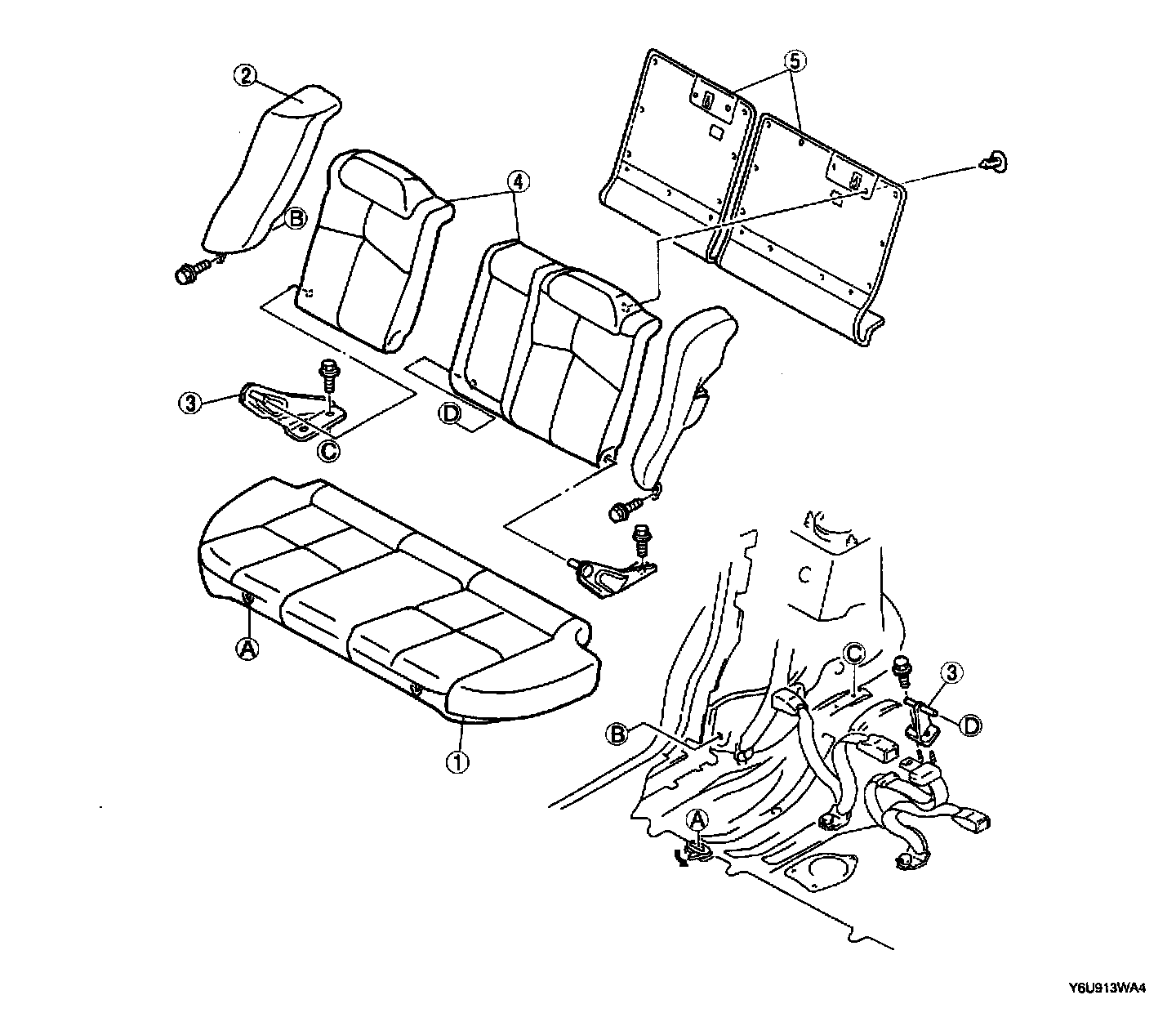

1.
Remove in the order as indicated below.
1.
Rear seat cushion
2.
Rear side seat
3.
Rear
seat back
hinge
4.
Rear
seat back
5.
Trunk mat
2.
Install in the reverse order of removal.
