Brake Lamp

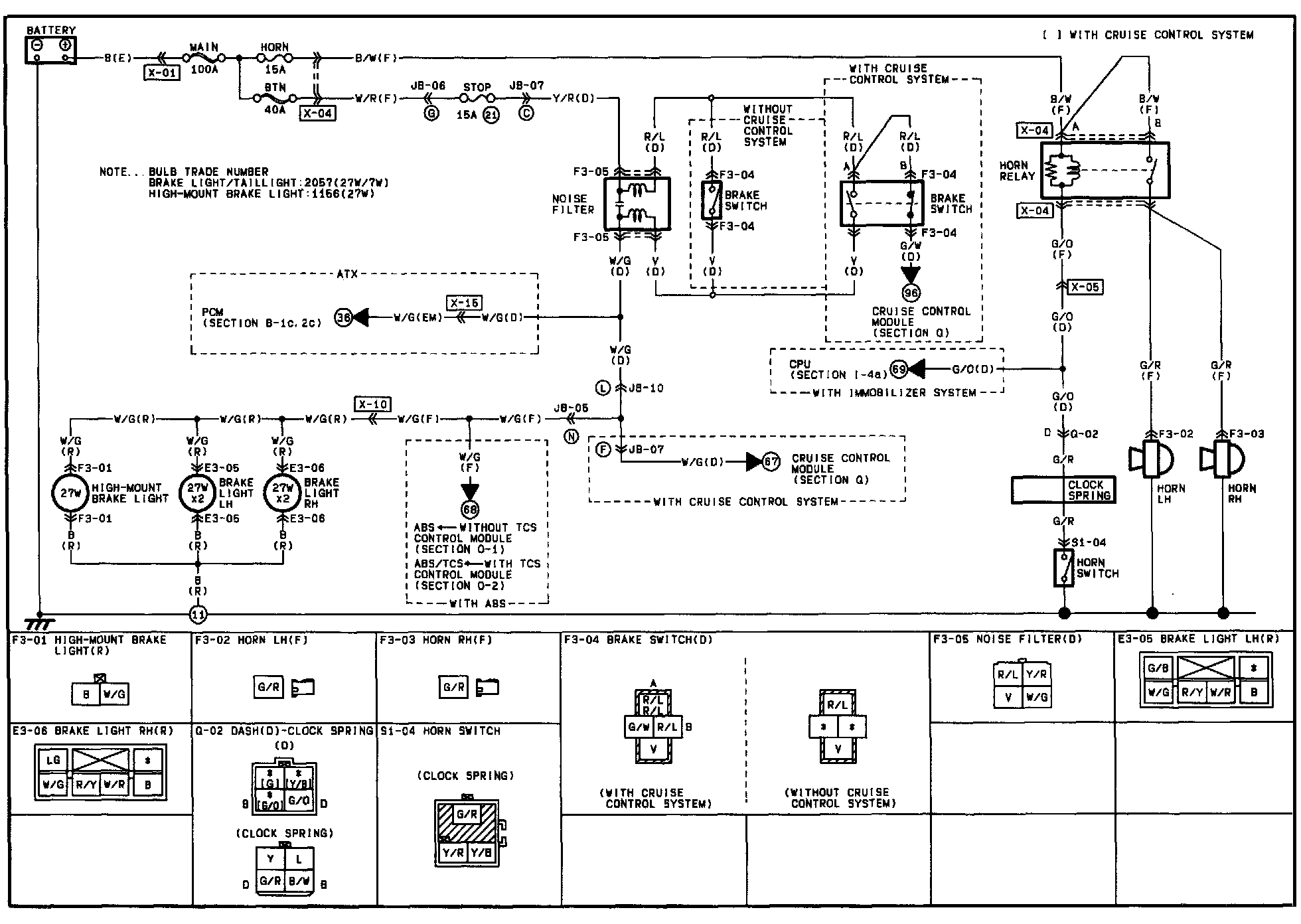

F-3 - Brake Light / High-Mount Brake Light / Horn Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
