Windshield Washer Hose: Service and Repair

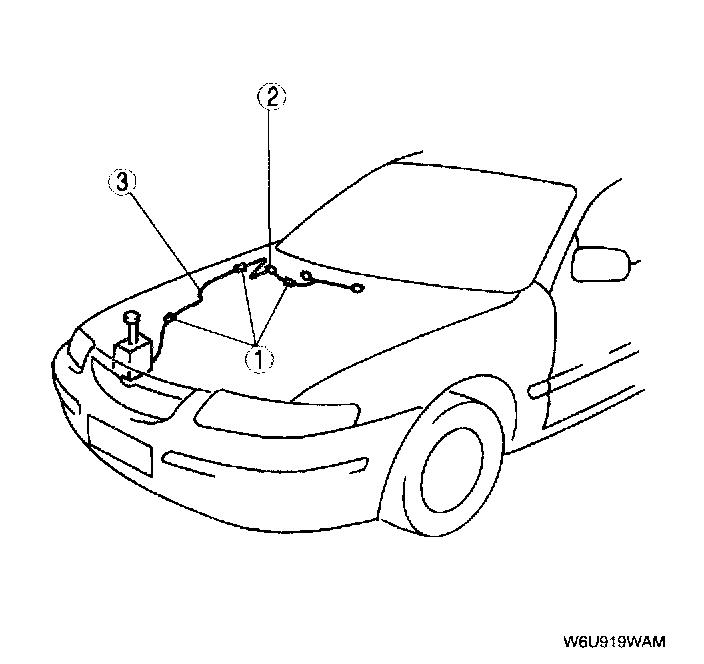

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

1. Partially peel off the right side mud guard.




2. Remove in the order as indicated below.
1. Clip
2. Joint pipe
3. Windshield washer hose

3. Install in the reverse order of removal.
