License Plate Lamp: Service and Repair

REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

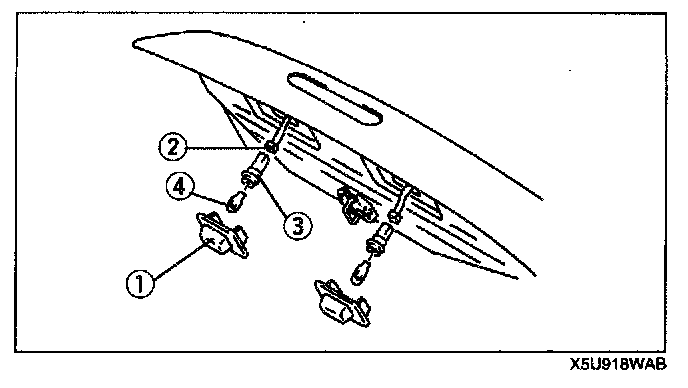

2. Remove in the order indicated.
1. License plate light
2. License plate light connector
3. Socket
4. License plate light bulb

3. Install in the reverse order of removal.

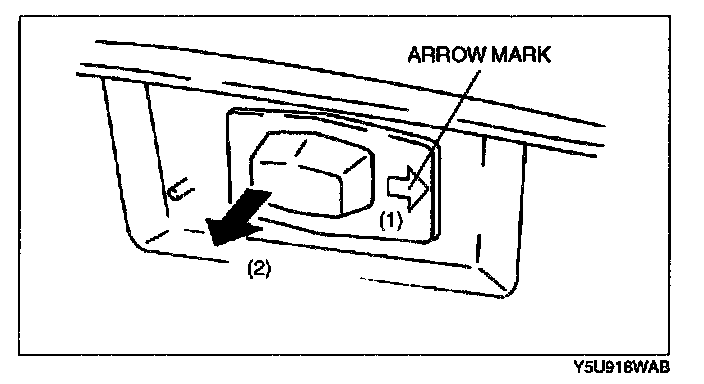

License Plate Light Removal Note




1. (1) Slide the license plate light to the arrow mark and (2) remove it.
