Turn Signal Flasher: Service and Repair

FLASHER CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the lower panel.

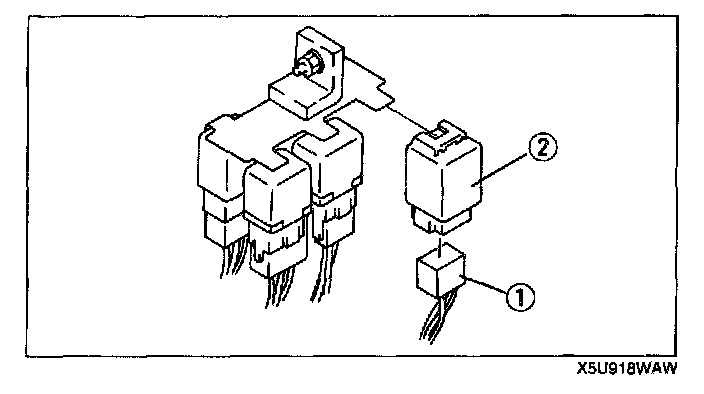

3. Remove in the order indicated.
1. Connector
2. Flasher control module

4. Install in the reverse order of removal.
