Instrument Cluster / Carrier
Instrument Cluster / Carrier

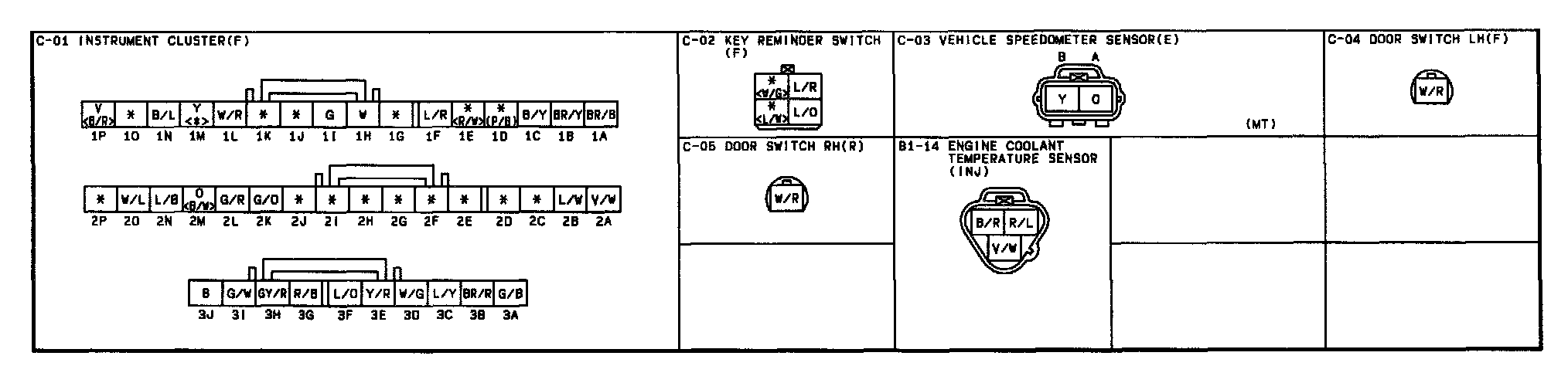

C-a - Instrument Cluster Connectors:
C-b - Instrument Cluster Connectors:
