Drive Belt: Adjustments

DRIVE BELT ADJUSTMENT

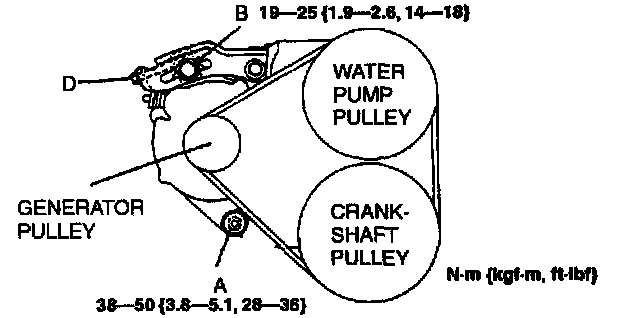

1. Loosen mounting bolts A, B and nut C.
2. Adjust the belt deflection or tension by turning the adjusting bolt D.
3. Tighten mounting bolts A, B and nut C.





GENERATOR





P/S, P/S + A/C

4. Verify the belt deflection or tension.
