Windshield Washer Hose: Service and Repair

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

1. Remove the hood insulator. (See HOOD REMOVAL/INSTALLATION.)

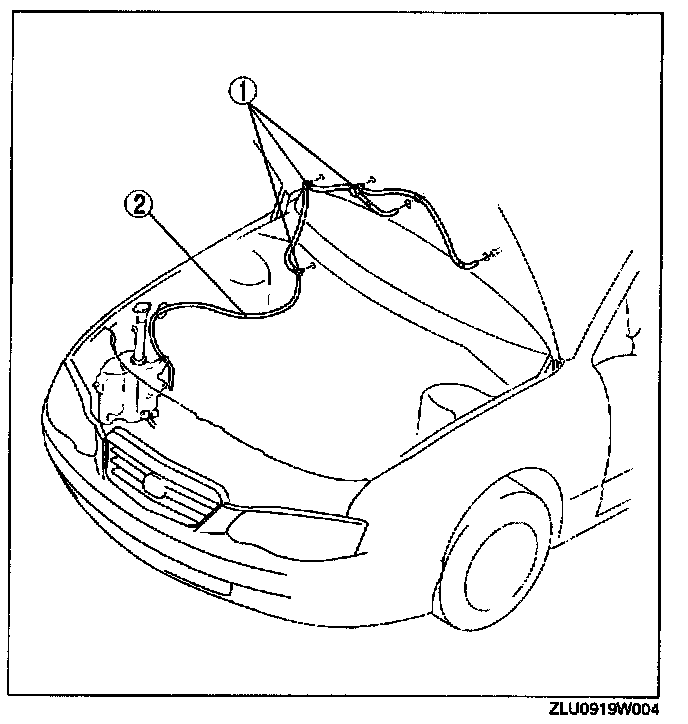

2. Remove in the order indicated below.
1. Clip
2. Windshield washer hose

3. Install in the reverse order of removal.
